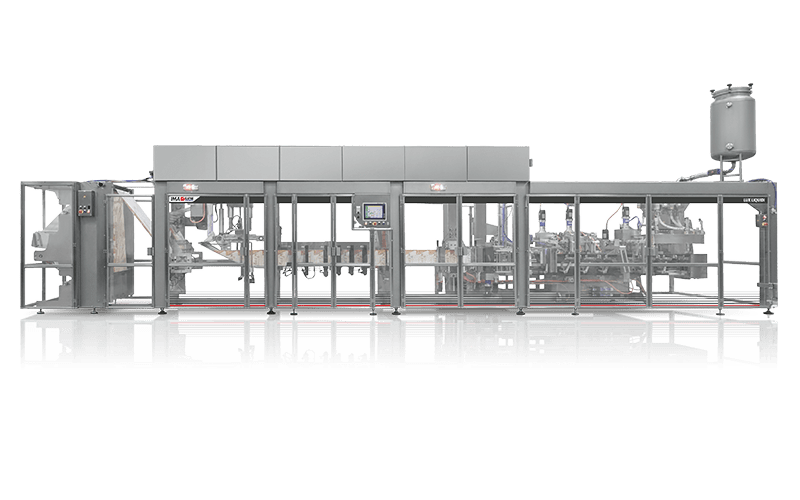

Revolutionary new range of innovative high speed pouch machinery with a unique duel motion system composed of an intermitted module for pouch forming and fitments application, combined with a continuous unit for product filling. This Ilapak Solution has been designed to form flat film roll stock into high quality Doypack bag, with fully integrated filling solutions for liquid products. Given its versatility, the LUX machine is suitable for a wide number of bag dimensions and filling volumes, as well as the possibility to equip the Doy pouches with corner spout application, shaped round corners and handle punch.
Given its versatility, this machine is suitable for following applications:
- Detergents (liquid detergent, degreaser, washing machine detergent, dishwasher detergent).
- Condiments and Sauces (Soy sauce, ketchup, mayonnaise, mustard, all food sauces or cream).
- Personal care (liquid or foaming soap, shampoo/hair care, body lotions or creams, make-up lotions).
- Beverage (sport and energy drinks, fruit juices, milk, all kinds of drinks).
- Soups (liquid soups).
- Noise level within 80db.
- Maximum reel dimension eØ 600mm - 23.622”.
- Reel core iØ 76/152mm - 2.992”/ 5.984”.
- Electrical consumption 400/480VAC - 50/60Hz.
- Pressure and air consumption 6 bar - 750Nl/min + 600Nl/min.
- Minimum/Maximum pouch width 120/235 mm - 4.724” / 9.251”.
- Minimum/Maximum pouch height 190/330 mm - 7.480” / 12.992”.
- Minimum/Maximum pouch gusset height 15/60 mm - 0.59” / 2.362”.
- Target output - up to 500 ml. 100 ppm.
- Target output - up to 1,5 lt. 70 ppm.
- Filling stations 8.
