Vertical Packaging Line for Dry Bulk Products

We Can Do It!

Completed project:

A modern, high-performance vertical packaging line designed for efficient dosing, packaging, and labeling of various dry bulk products. The system features a modular design, a high level of automation, and adaptability to different bag types and production requirements.

Line configuration and technological modules

The packaging line consists of integrated and synchronised equipment modules:

Product feeding system

• Elevator (bucket conveyor)
• Vibro hopper for even product distribution
• Feed conveyor for stable flow control
• Bypass tubular return system for product recirculation back to the hopper

Dosing and weighing module

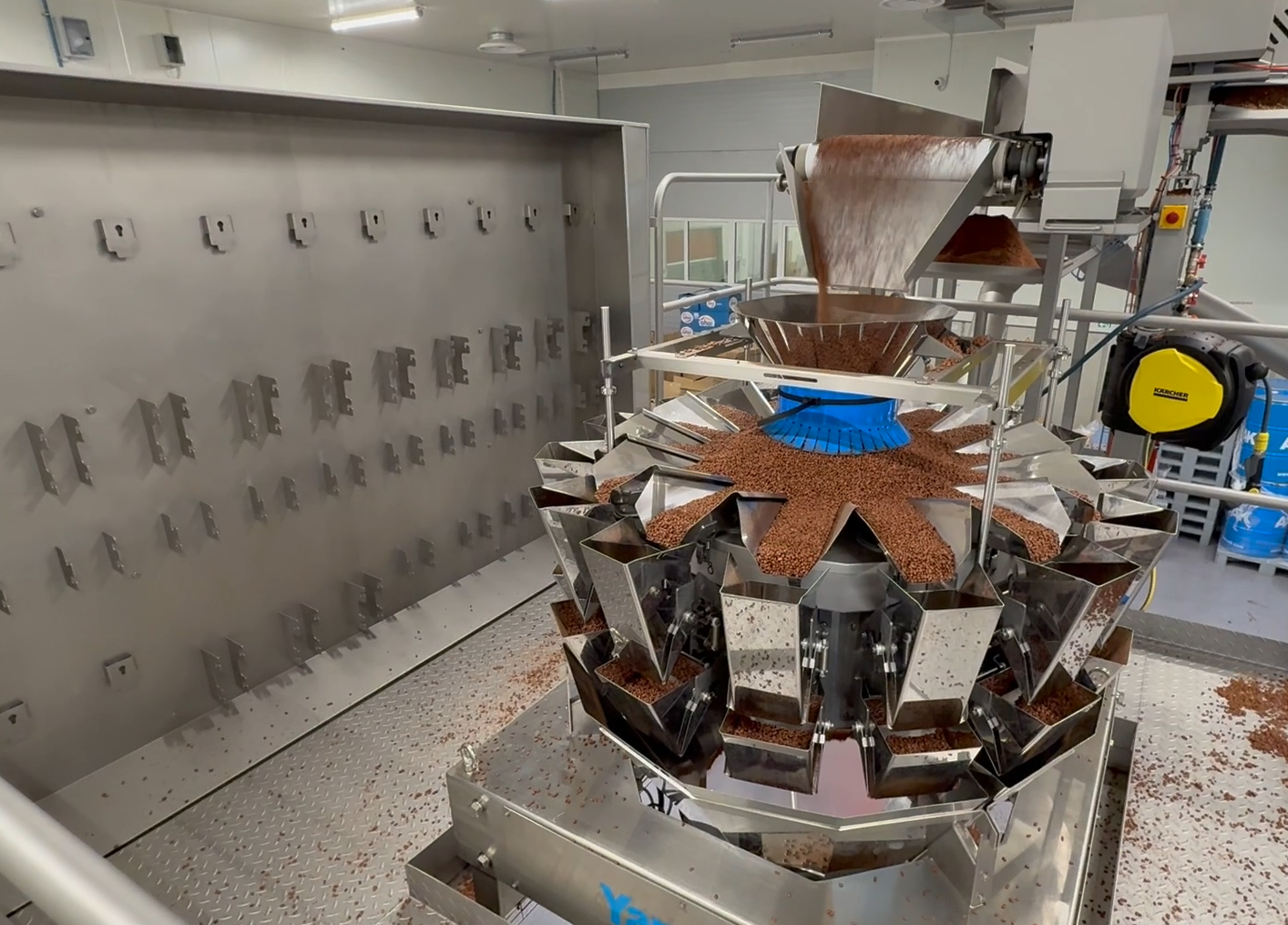

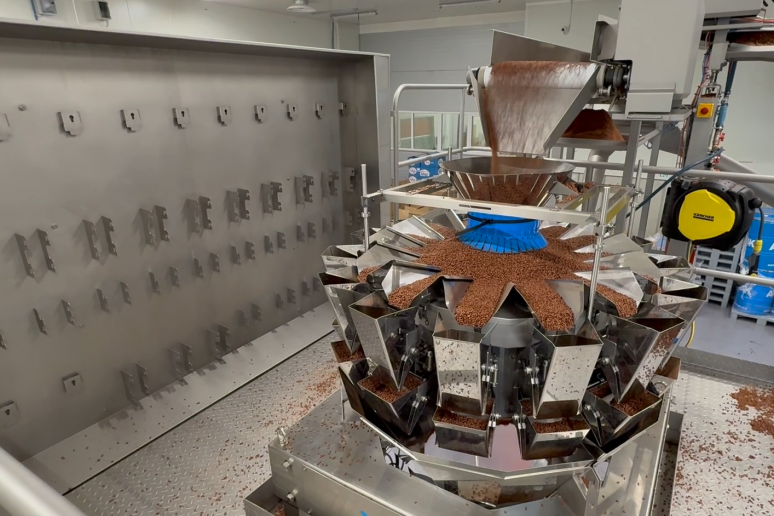

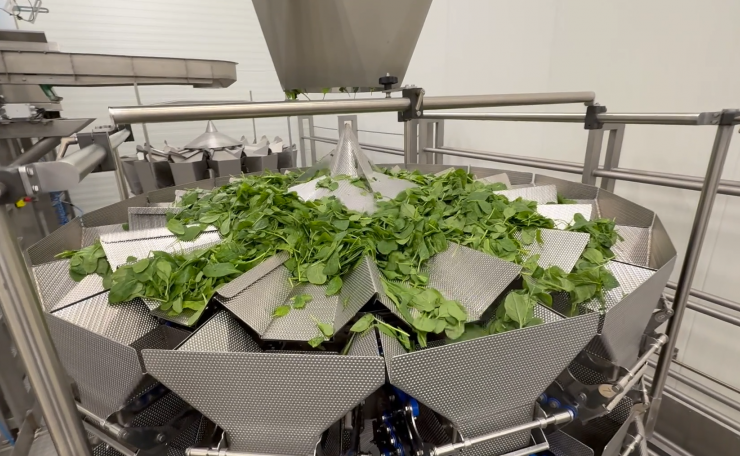

• Platform for multihead weigher
• Integrated bucket washing system for hygiene maintenance and fast product changeovers

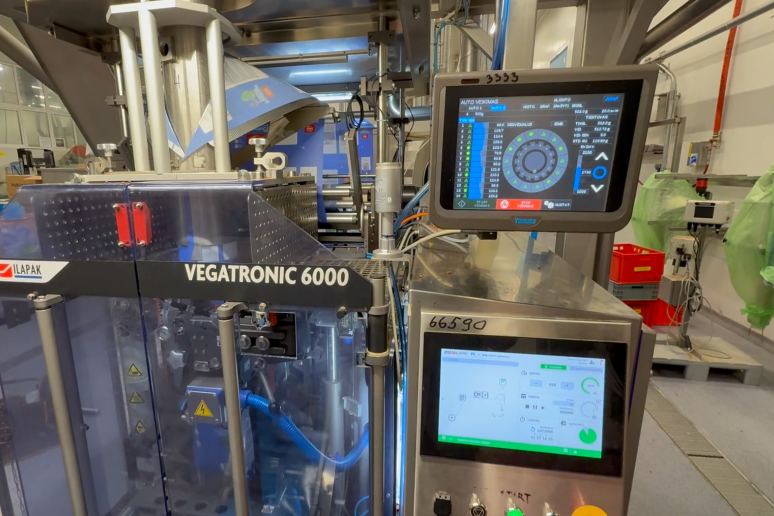

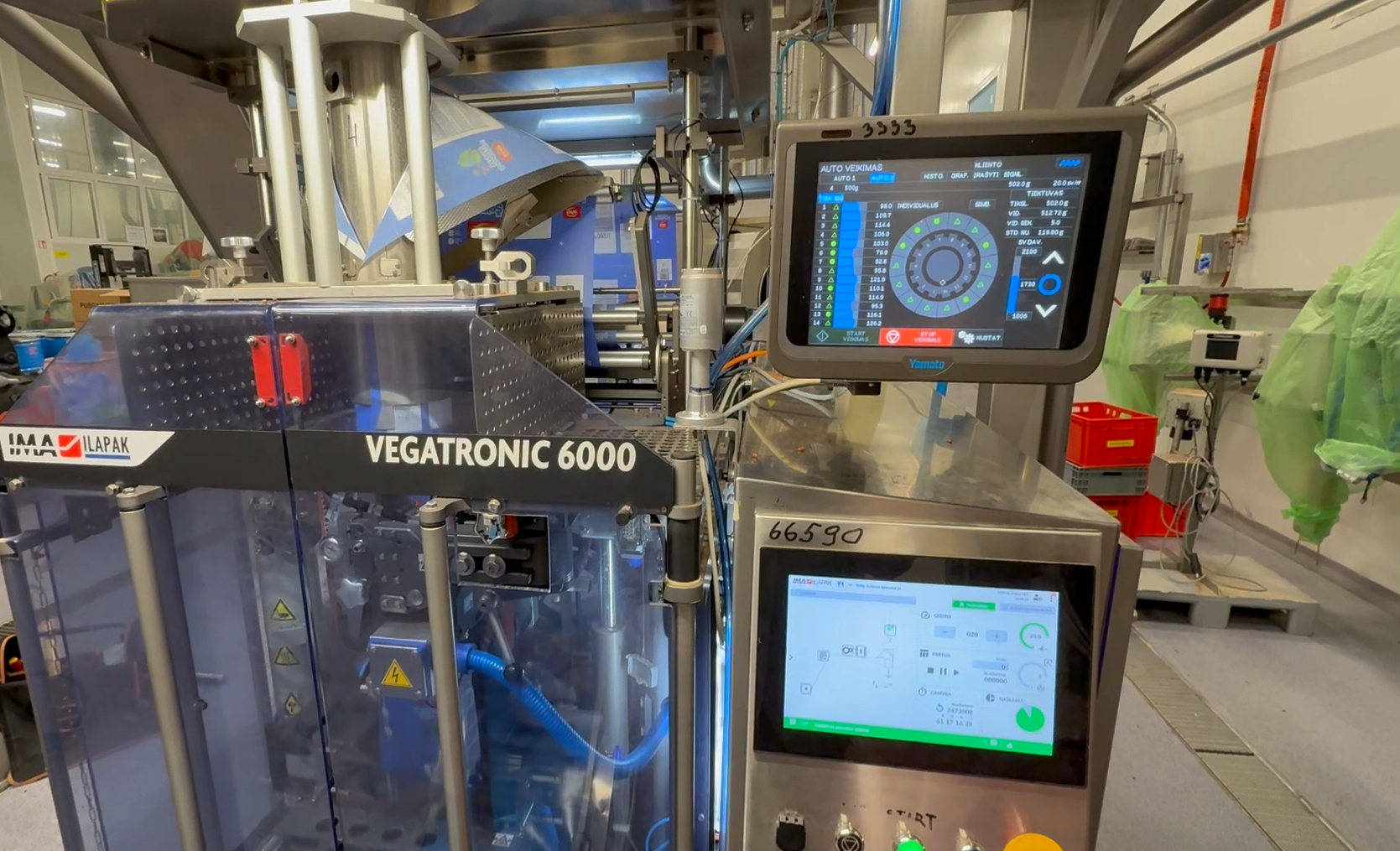

Packaging machine

• Continuous-motion, open-frame vertical packaging machine
• High-precision form–fill–seal (VFFS) system

Auxiliary automation systems

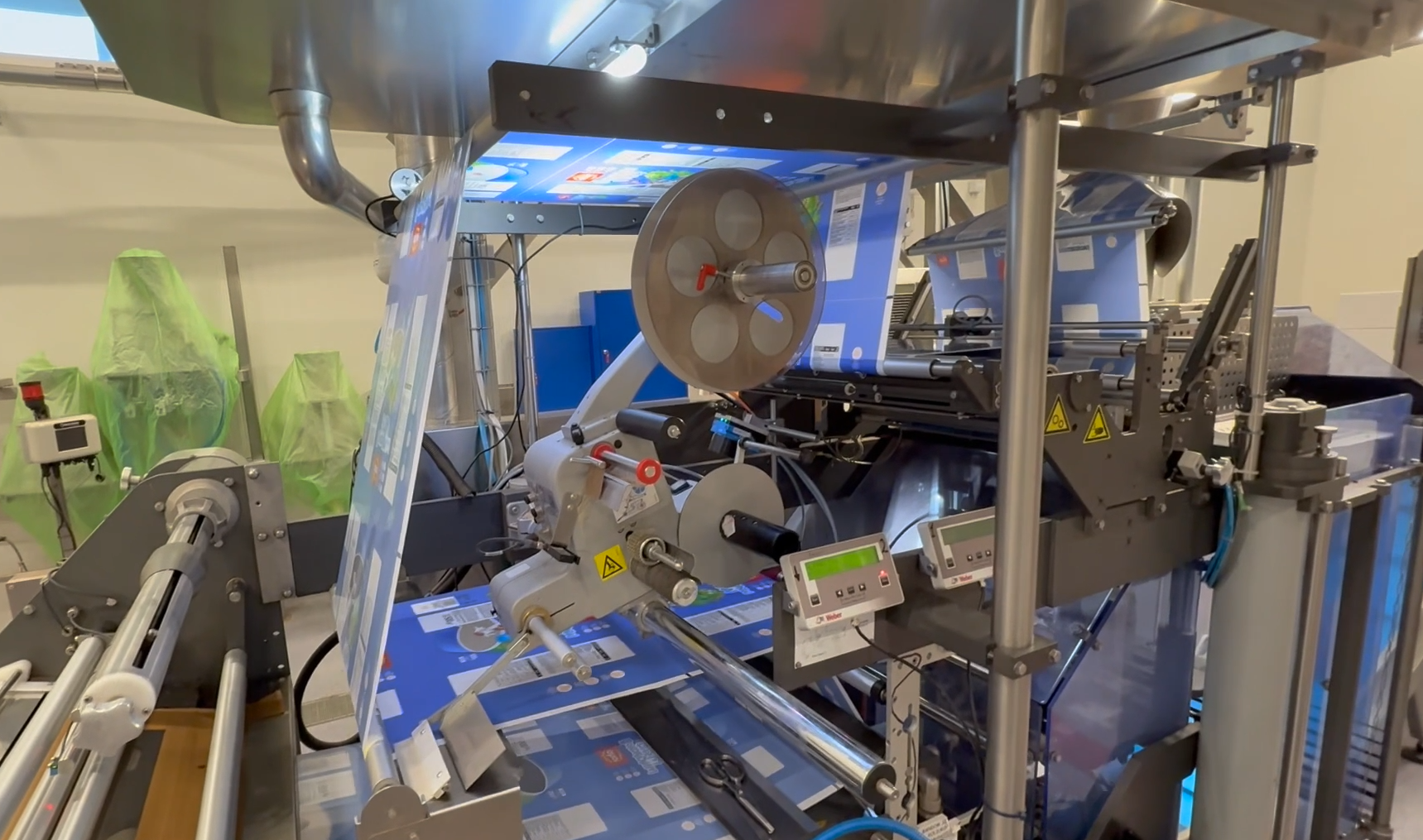

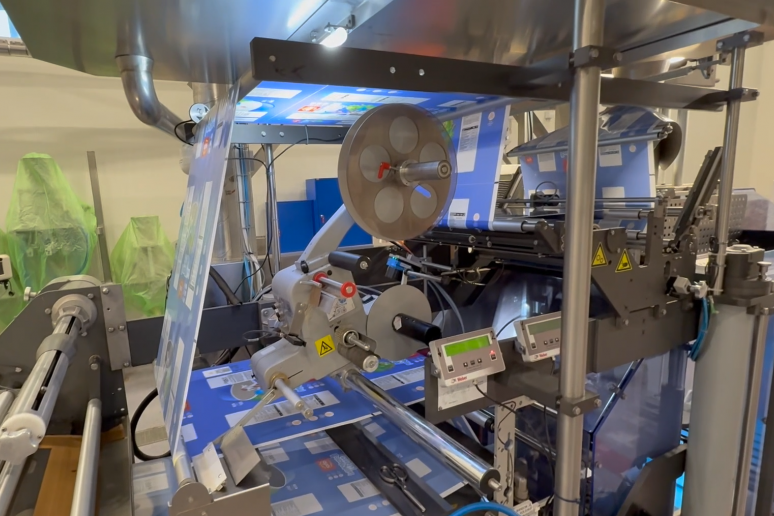

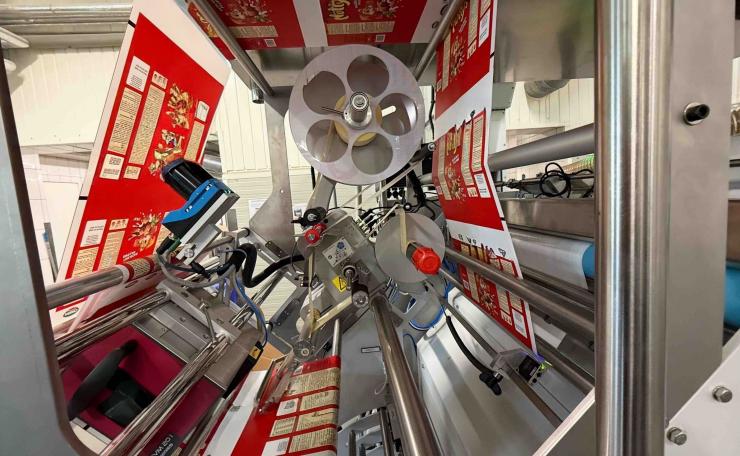

• Automatic film roll splicing system ensuring uninterrupted operation

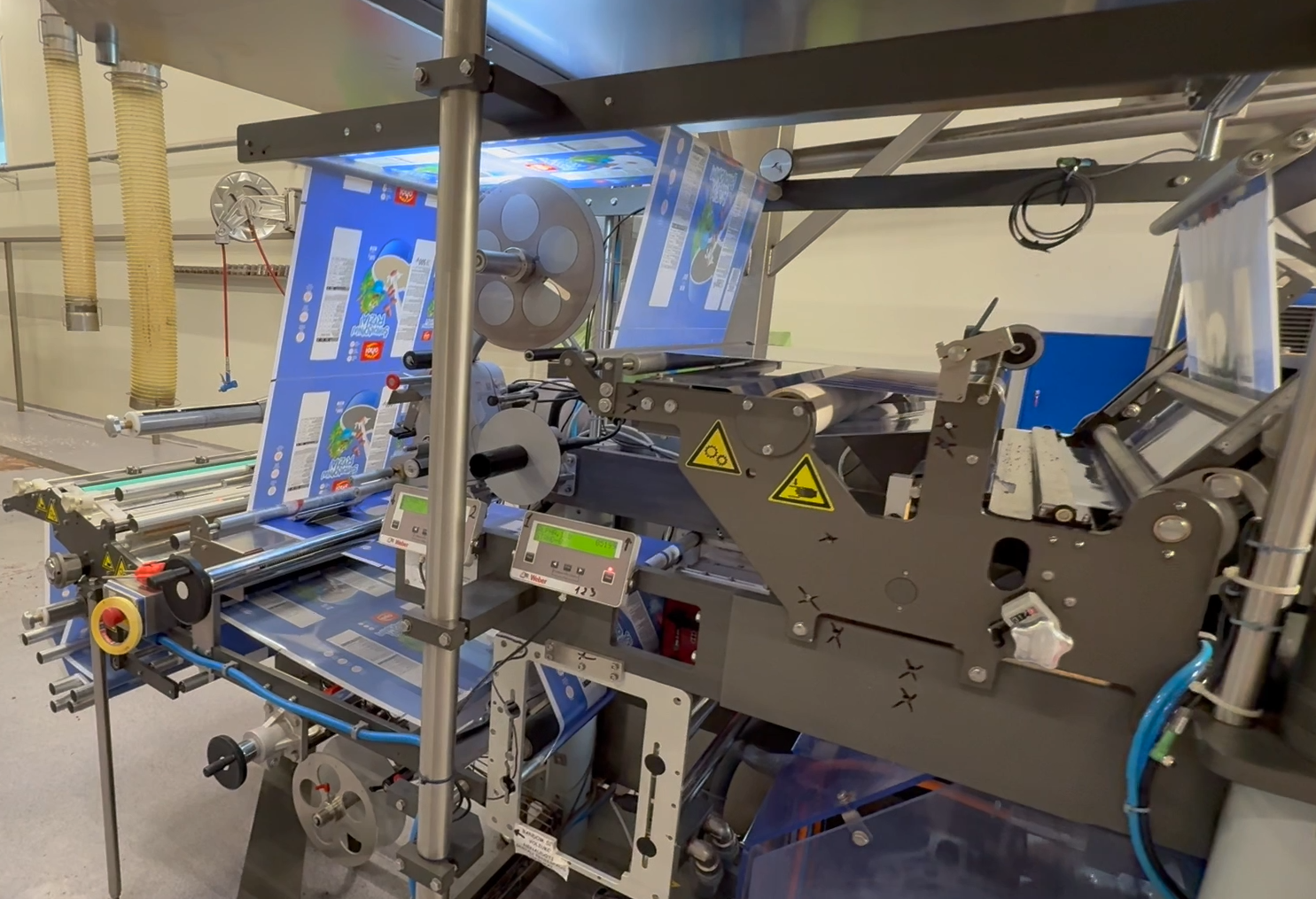

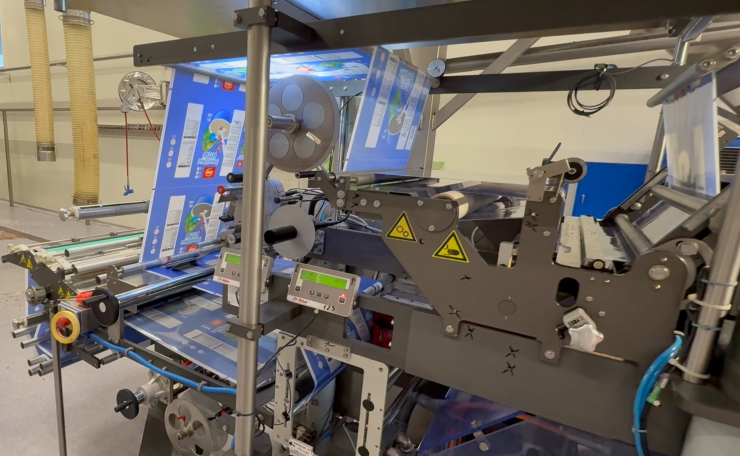

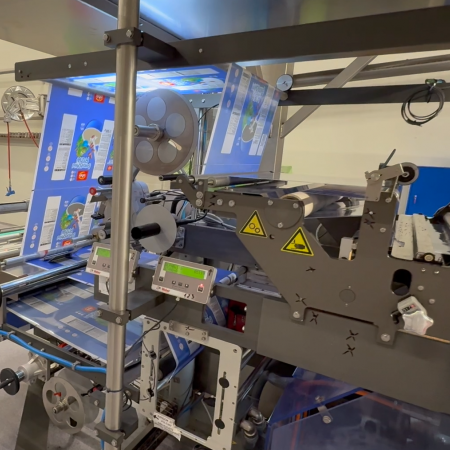

• Dual label application system (tandem configuration)
• Integrated printer for batch, date, and code marking

Packaging capabilities

The line is designed for producing different bag types:

• Pillow bags
• Block bottom bags
• Quattro seal bags (four-side sealed format)

Key advantages

• Up to 100 packs per minute output
• Fully automated continuous operation
• High dosing accuracy and product recirculation control
• Flexible format changeover for different packaging types
• Reduced downtime thanks to automatic splicing and recirculation systems
• Suitable for various dry bulk product segments (grains, nuts, coffee, sugar, pasta, etc.)
