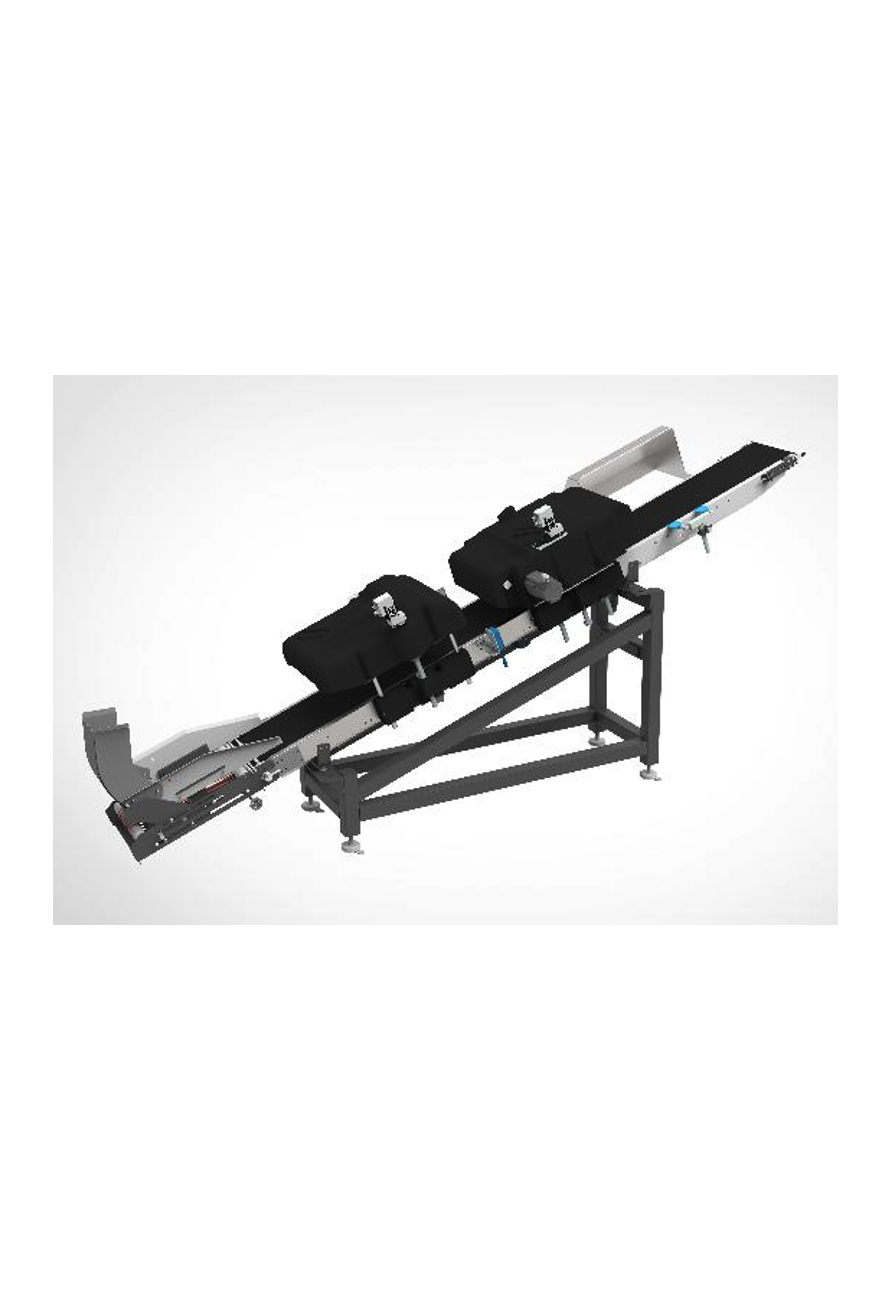

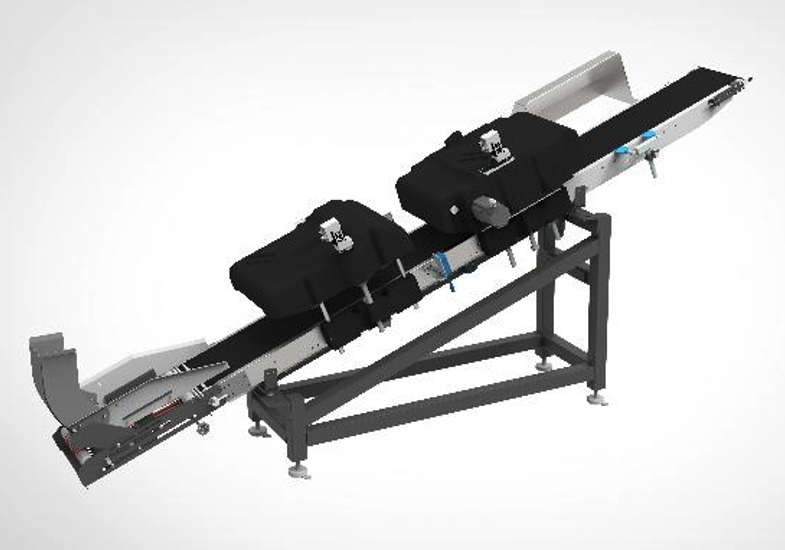

Bag Air fill Checker

Infeed with Quality Control

Capacity:  120 bpm (optional 140bpm)

Measuring Range:  L 150-400mm, W 130-275mm, H 25-120mm, Weight 27-300g.

Bag type: pillow, quad, flat bottom, gusseted

Pressure range:  0-20kg.

Leak detection:   ~ 3mm 1)2),   >5mm gross leak 2)

Leakage position:   close to end seal or at end seal

Accuracy:  +/- 3mm with a tolerance of +/-0,4mm. 95% detection rate
