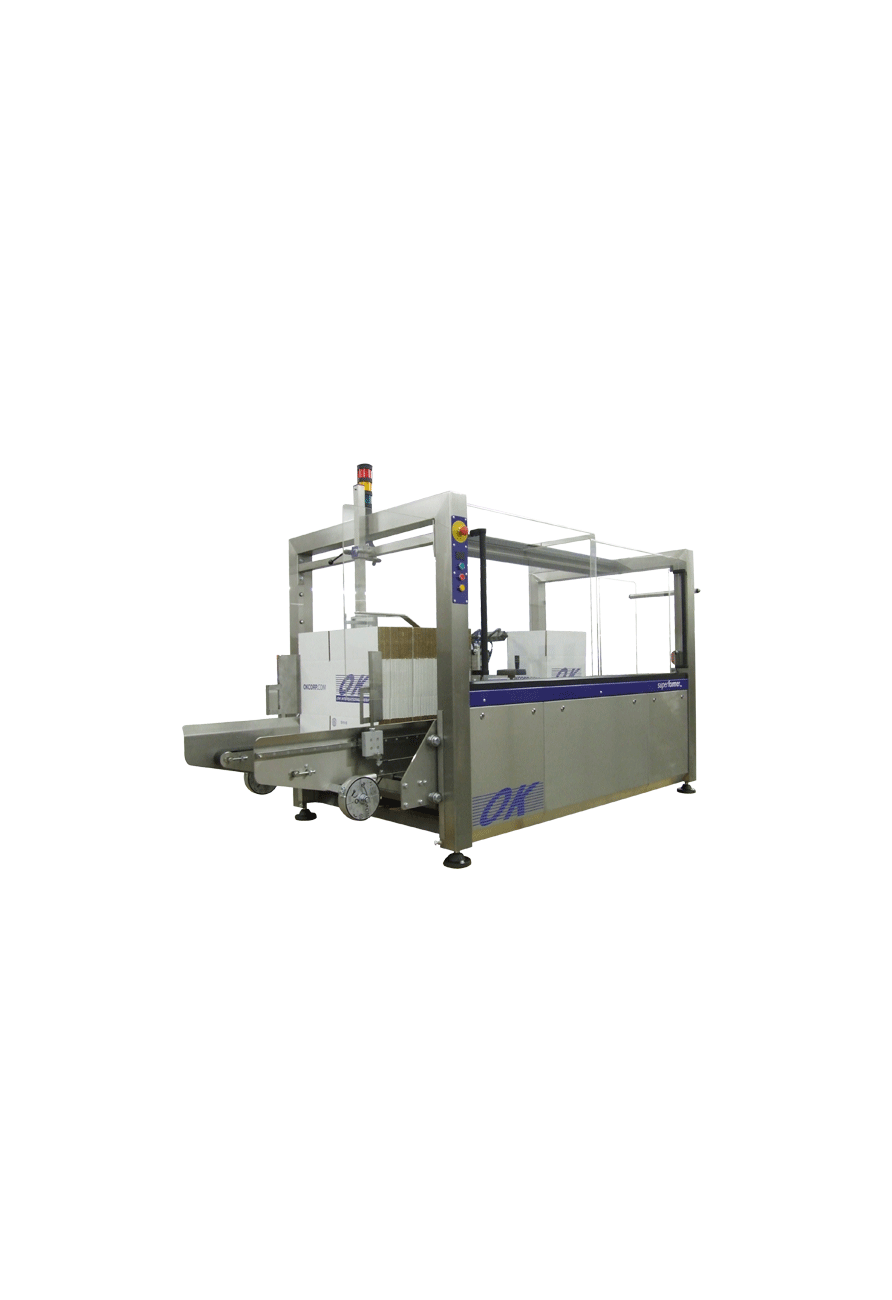

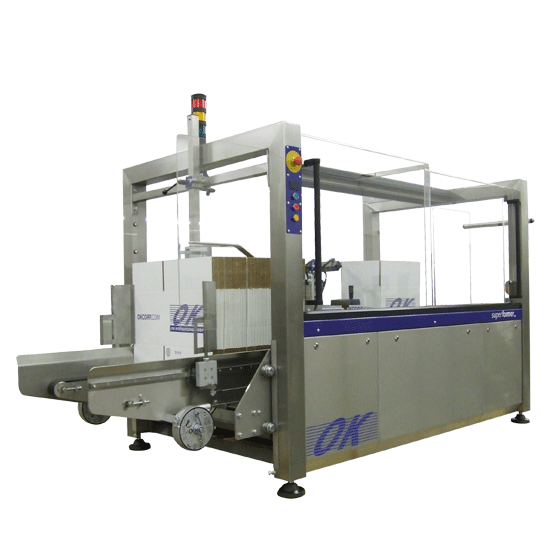

Superformer SF1
Automatic Case Erector & Bottom Taper
These premium, heavy duty case erectors are available in several frame sizes for a wide range of single and double wall HSC and RSC cases (AFM and FOL optional).
Features |
Benefits |
|
|
|
|
|
|
|
|
|
|
Additional information
TECHNICAL SPECIFICATIONS |
|
| Case range: |
Superformer SF1S 20.00” x 16.00 x 20.00” (L x W x H) max. |
|
Superformer SF1 24.00” x 20.00” x 24.00” (L x W x H) max. |
|
|
Superformer SF1L 31.50” x 20.00” x 24.00” (L x W x H) max. |
|
| Speed: | Superformer SF1S Up to 15 cases per minute. |
| Superformer SF1 Up to 13 cases per minute.Servo Option – Up to 20 per minute |
|
| Superformer SF1L Up to 9 cases per minute. |
|
| Taping heads: | OK 55 high quality taping head with open tape feed path, suitable for 2” (50mm) wide tape (max.) and 14” (350mm) diameter rolls. OK 75 3″ (75mm) optional. |
| Case magazine: | Horizontal, belt driven, indexing magazine, length 40” (1000mm). 60″ (1500mm) optional. |
| Electric: | 480V, 3 Phase, 60Hz. Other voltages to requirement. 400V, 3 Phase, 50Hz. Other voltages to requirement. |
| Pneumatic: | 80-100 psi (6 – 8 bar), 1/2” supply. Clean, dry and unlubricated air. |
| Controls: | Allen Bradley or Siemens PLC controls with operator fault finding display. Signals for low tape, no tape, tape not applied, low case magazine, and empty case magazine. |
| Finish: | Stainless steel frame and exterior, plated and painted interior. |
| Machine Handling: | Right to left or left to right to requirement. |
