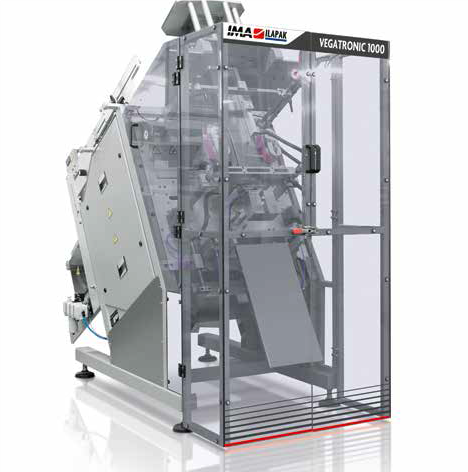

VEGATRONIC 1000 INCLINED
Ilapak's Vegatronic series of vertical packaging machinery VFFS (Vertical Form Fill and Seal) can produce the highest quality and most innovative range of pack styles, whilst delivering flexibility and exceptional performance. The Vegatronic series is ideal for loose products, fresh or frozen produce, powders, granulated products, and liquids.
Additional information
  • Machine Speed 60 cpm.
  • Wrapping Materials Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene.
  • Electronic Platform Omron PLC, Allen Bradley PLC*, Siemens PLC*.
  • Program Memory 40 programs.
  • HMI Colour TFT 6” touch screen, Allen Bradley*, Siemens*.
  • Power Requirement AC 400 V± 5%, 3 phase, neutral, 50/60 Hz, 5.9 kW, 9.7 A.
  • Compressed Air up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE.
  • Electrical cabinet Remote.
  • Machine dimensions (W x D x H) 1254 x 2366 x 1985 mm (49.5 x 93.25 x 78.25’’).
  • Machine finishing Electrostatic epoxy powder coating, stainless steel*.
  • Machine Weight 800 kg (1765 lb).

BAG DIMENSIONS

  • Max. width 380 mm (15’’), 370 mm (14.5’’) for LDPE.
  • Min. width 50 mm (2’’).
  • Max. length** 380 mm (15’’).

FILM REEL DIMENSIONS

  • Max. width 780 mm (30.75’’), 830 mm (32.75’’)*.
  • Max. outer diameter 500 mm (19.75’’).
  • Core diameter 76 mm (3’’), 152 mm (6’’)*.

* optional
** greater length feasible on request
