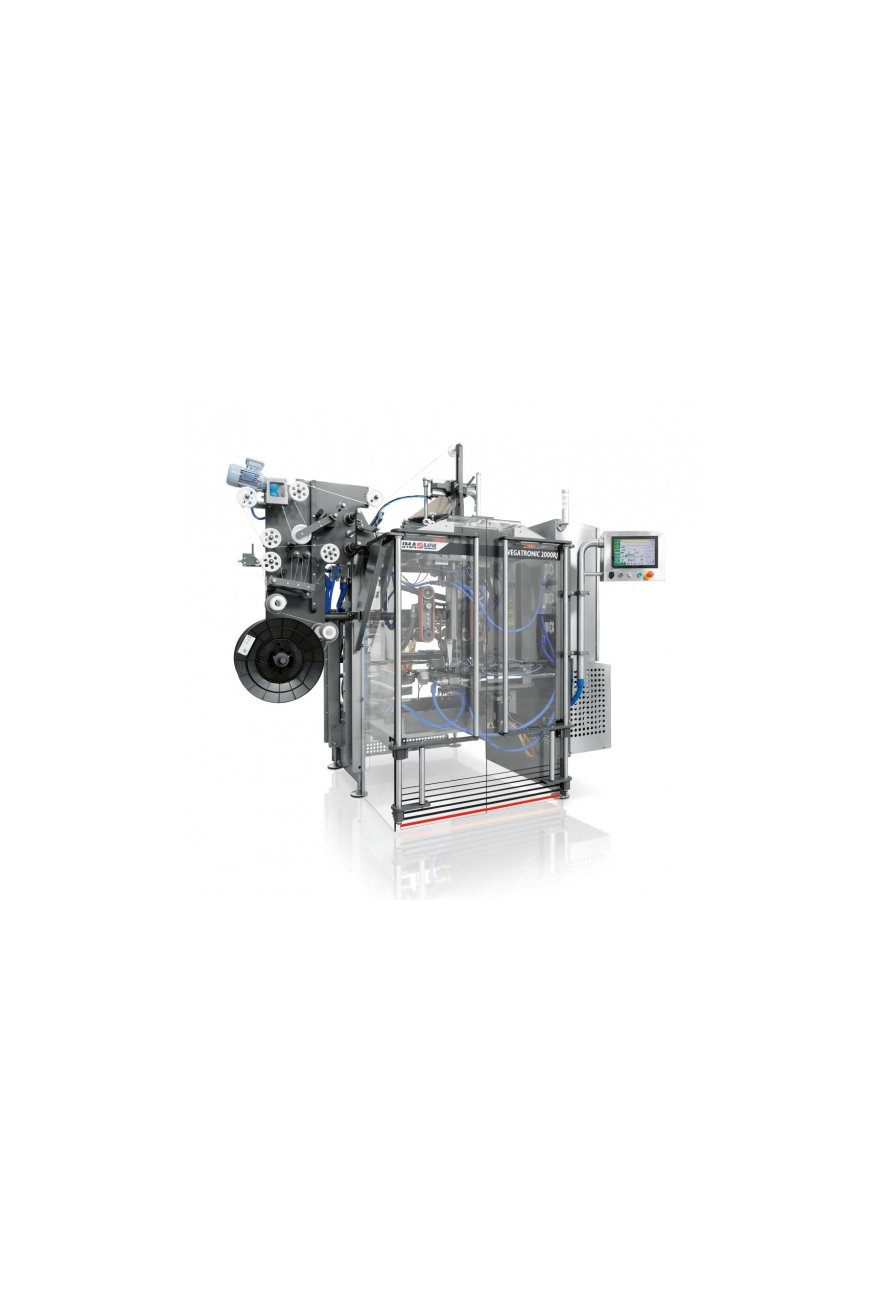

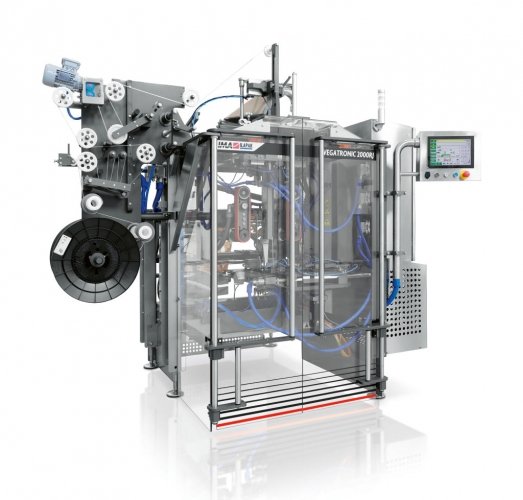

VEGATRONIC 2000 RJ
Ilapak’s Vegatronic 2000RJ is today’s most flexible intermittent machine. Excellent sanitary design, great accessibility, and a variety of pack styles including Doy-style pouches with or without reclosable zipper make this machine unique and ideal in a number of industries such as dairy, confectionery, snacks, bakery, IQF food, and many others.
Additional information
  • Machine Speed 90 cpm.
  • Wrapping Materials Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene.
  • Electronic Platform Industrial PC, Allen Bradley PLC*, Siemens PLC*.
  • Program Memory 100+ programs.
  • HMI 12” HMI colour touch screen TFT SVGA resolution, Allen Bradley*, Siemens*.
  • Power Requirement 400 Vac±5%, 3 ph, neutral, GND, 50/60 Hz, 12.1 kW, 17.5 A.
  • Compressed Air up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE.
  • Electrical cabinet Right-hand version, left-hand version* or remote cabinet*.
  • Machine dimensions (W x D x H) 2688 x 2417 x 1745 mm (105.75 x 92.25 x 68.75”).
  • Machine finishing Electrostatic epoxy powder coating, stainless steel*.
  • Machine Weight 1600 kg (3530 lb).

BAG DIMENSIONS

  • Max. width 430 mm (16.75”), 420 mm (16.5”) for LDPE.
  • Min. width 50 mm (2”).
  • Max. length** 580 mm (22.75”).

FILM REEL DIMENSIONS

  • Max. width 880 mm (34.5”), 930 mm (36.5”)*.
  • Max. outer diameter 600 mm (23,75”).
  • Core diameter 76 mm (3”), 152 mm (6”)*.

* optional
** greater length feasible on request
