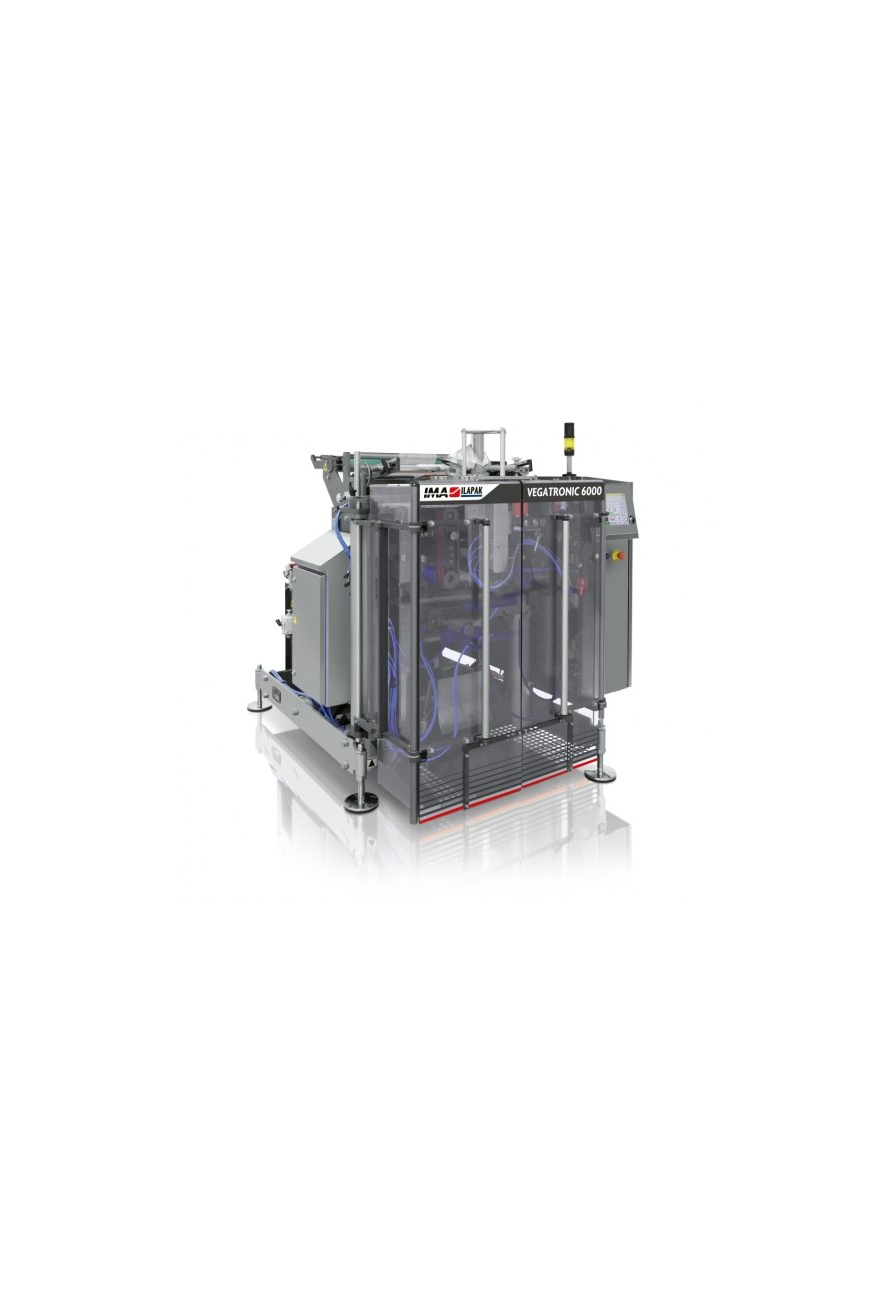

VEGATRONIC 6000
The continuous film motion bagger can pack both dry and wet products in a variety of bag styles, including pillow, block bottom, Quattro (stand-up flat block bottom bags with four corner seal, also known as Stabilo bag), EasyPack and Doypack. The film carriage design enables packs of up to 280mm in width (680mm for Quattro packs) to be produced. Access is facilitated by the packaging machine’s open frame design, clean film carriage and mounting of the forming tube on a swivel arm for easy removal. The new ETHERCAT electronic platform allows the packaging machine to run in box motion mode when longer sealing time and higher sealing pressure are required or match the performance of a rotary jaw machine when speed is of the essence.
Additional information
- Machine Speed 210 cpm.
- Wrapping Materials heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene.
- Electronic Platform Industrial PC, Allen Bradley PLC*.
- Program Memory 100 programs.
- HMI 12” HMI colour touch screen TFT SVGA resolution, Allen Bradley*.
- Power Requirement 400 Vac± 5%, 3 ph, neutral, GND, 50/60 Hz, 15.6 kW, 22.6 A.
- Compressed Air up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE.
- Electrical cabinet Right-hand version, left-hand version*.
- Machine dimensions (W x D x H) 1540 x 2346 x 1366 mm (60.75 x 92.5 x 53.75”).
- Machine finishing Electrostatic epoxy powder coating, stainless steel*.
- Machine Weight 1600 kg (3530 lb).
BAG DIMENSIONS
- Max. width 280 mm (11”), 270 mm (10.5”) for LDPE.
- Min. width 50 mm (2”).
- Max. length** 500mm (19.75”).
FILM REEL DIMENSIONS
- Max. width 580 mm (22.75”), 630 mm (24.75”)*.
- Max. outer diameter 500mm (19.75”).
- Core diameter 76 mm (3”), 152 mm (6”)*.
* optional
** greater length feasible on request
