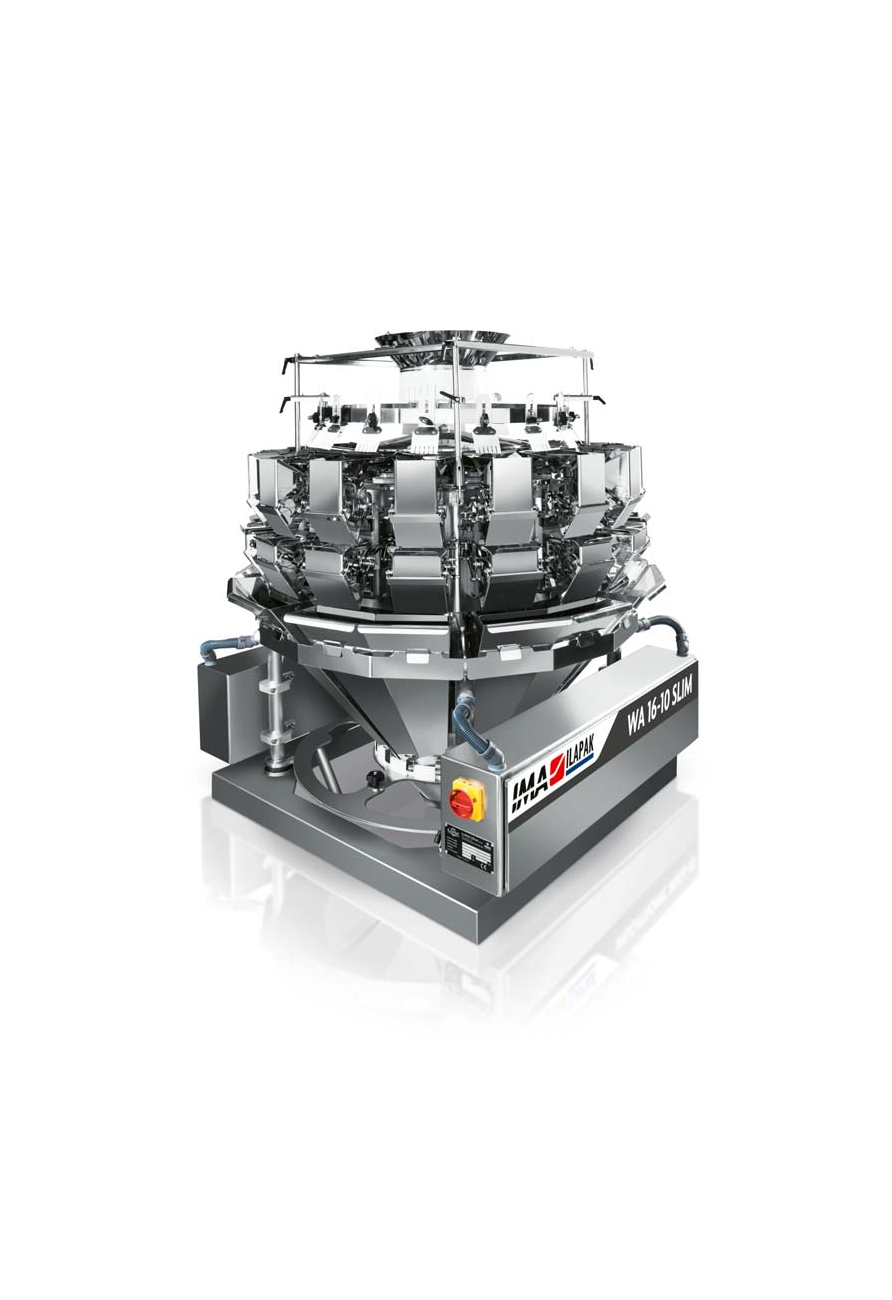

WA 16-10 SLIM

Compact-design Multi-Head weigher especially conceived for small weighments, high speed range applications. Easy detachable product contact parts available in plain execution, embossed or special coatings, weighing or counting mode. Ideal for Confectionery, Bakery, Snacks, Cheese and many other markets.

Additional information
  • Max. speed 160 wpm.
  • Weigh heads 16.
  • Bucket volume 1,0 l.
  • Max. discharge volume (single dump) 2,5 l.
  • Discharge weight range (single dump) 10g - 750g.
  • Max. piece length 85mm.
  • Product distribution vibratory or rotary distribution cone with loadcell to control product infeed.
  • Product contact parts stainless steel AISI 304. Embossed plate* and special coatings*
  • Drive Springless, high speed stepper motors.
  • Loadcells C3 accuracy class, OIML approved R76 class.
  • Electronic platform Industrial PC.
  • HMI 12” (18” *) colour touch screen with remote control capability (augmented reality feature*).
  • Program memory over 1000 recipes.
  • Power supply (opt. excluded) 230 Vac±5%, 1 ph, neutral, GND, 50/60 Hz, 1.2 kW, 6 A (3 A @ 480 V).
  • Compressed air (opt. excluded) 180 l/min @ 7 bar.
  • Machine dimensions (W x D x H) 1175 x 1175 x 1445 mm (46.25 x 46.25 x 56.75 in).
  • Machine weight 500 kg.



    * optional
