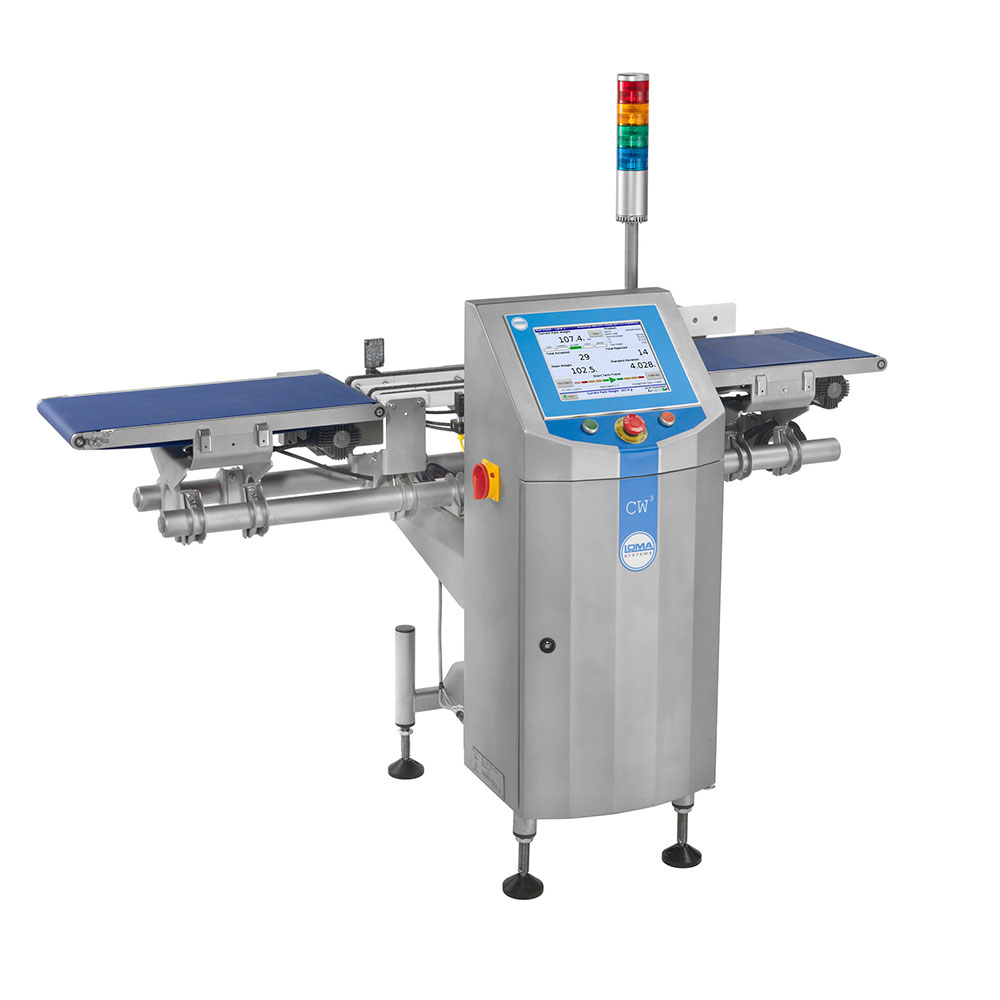

CW3 Draglink

Draglink Checkweigher for Cans, Jars and Bottles

Designed to be integrated into the production process to ensure product weight meets legislation, the CW3 Draglink is designed for products packaged in cans, jars or bottles and up to 6 kg in weight. The complete system is available with specification including BRC, IFS, & Retail compliance and can be approved to either OIML R51 and MID (EC TAC). All systems come complete with Automatic Mean weight correction to help meet weight legislation. The Loma CW3 Checkweigher includes brushless motors & proven conveyor components designed for reliable 24/7 operation.

Additional information

Specifications

Material of Construction: 304 Brushed stainless steel.
Line Height Option: 750 - 950mm (+/- 50 adjustment).
Maximum Speeds: 115m/min.
Supply Voltages: 110 or 230 V, single phase 50/60Hz, neutral & amp;Earth.
Air Supply: 5 to 8 bar (10mm Outside Dia) 72-116 Psi.
Operating Environment: 0-40oC.
IP Rating: IP65.
Belt Width: 200/300mm (Model Dependent).
Belt Type: Nylatron GS 1/4" Chain x 3.
Reporting: Batch, Shift.
Data Retrieval: Via USB, Ethernet, Tracs.

CW3_Draglink_Datasheet.pdf

Draglink Checkweigher for Cans, Jars and Bottles

Specifications
