Aluminium Cross Clamps

Simple.Flexible.Connection

Aluminum cross-clamp connectors are universal elements for connecting tubes or shafts at 90° angles with 2 levels of through-holes.

Here, the closed design (one-piece) with clamping slots is to be distinguished of the multi-part design (three-piece).

The one-piece components with clamping slots develop an extremely stable and precise connection between tube and bore hole due to mechanically machined holes!

The multi-part components are particularly suitable for retrofitting or difficult to access mounting situation. In addition, this series is available with diameters for round and square tubes or shafts and their combinations. Square tube connectors are particularly suitable for torsionally stiff constructions.

The following series and diameters are available as standard parts with slide grinded or sandblasted surface, furthermore all parts can be delivered black powder coated, polished or anodized.

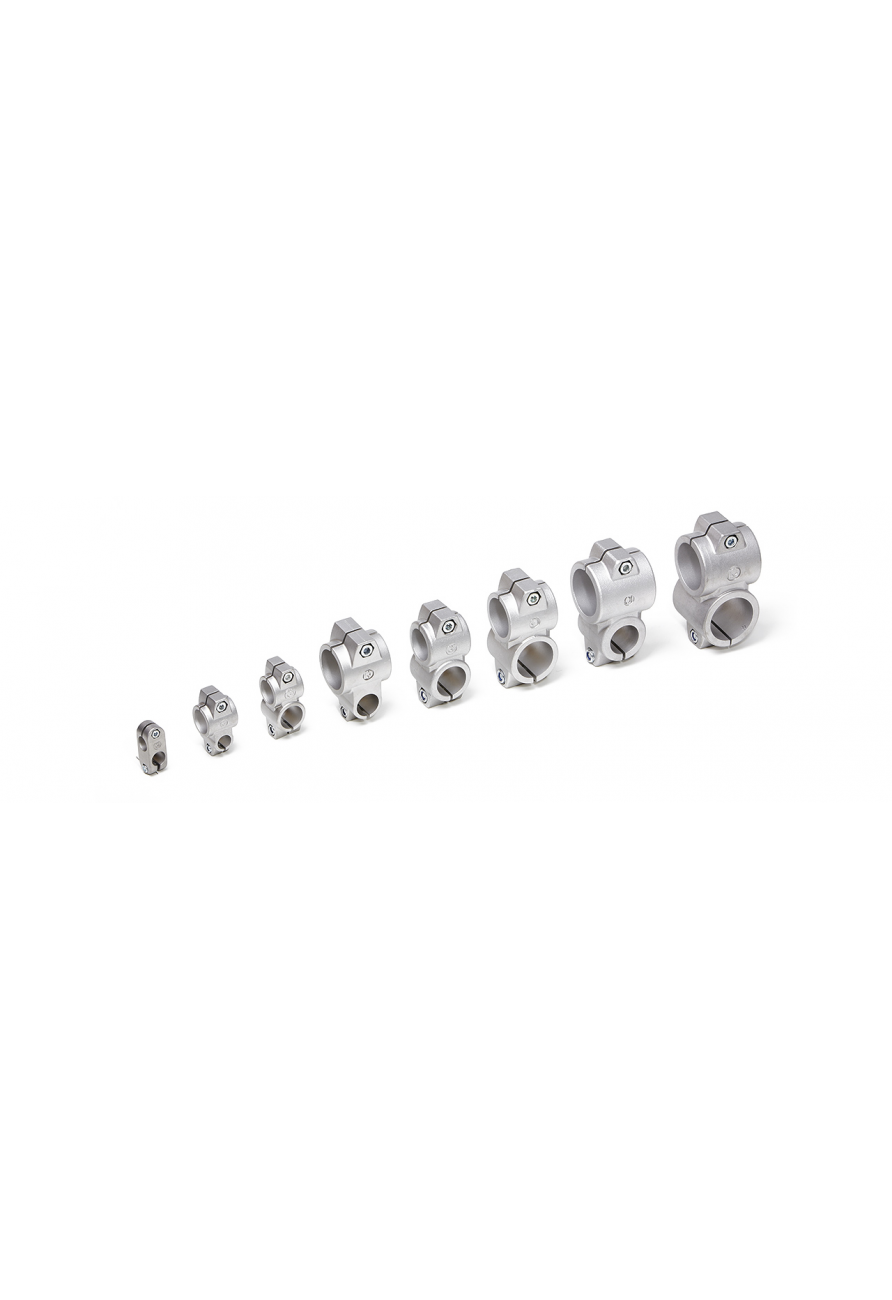

One-piece design with clamping slots.

Compact Series: KNK 10, 12, 14, 15, 16, 18 mm

Standard Series: KNS 20, 25, 30 mm,

KNS 40, 42, 45, 48, 50 mm,

KNS 50, 55, 60 mm.

Intermediate Series: KNZ 30, 32, 35, 40 mm.

Universal Series: KUS 10, 12, 14, 15, 16, 18 – 20, 25, 30 mm,

KUS 20, 25, 30 – 40, 42, 45, 48, 50 mm,

KUS 40, 42, 45, 48, 50 – 50, 55, 60 mm.

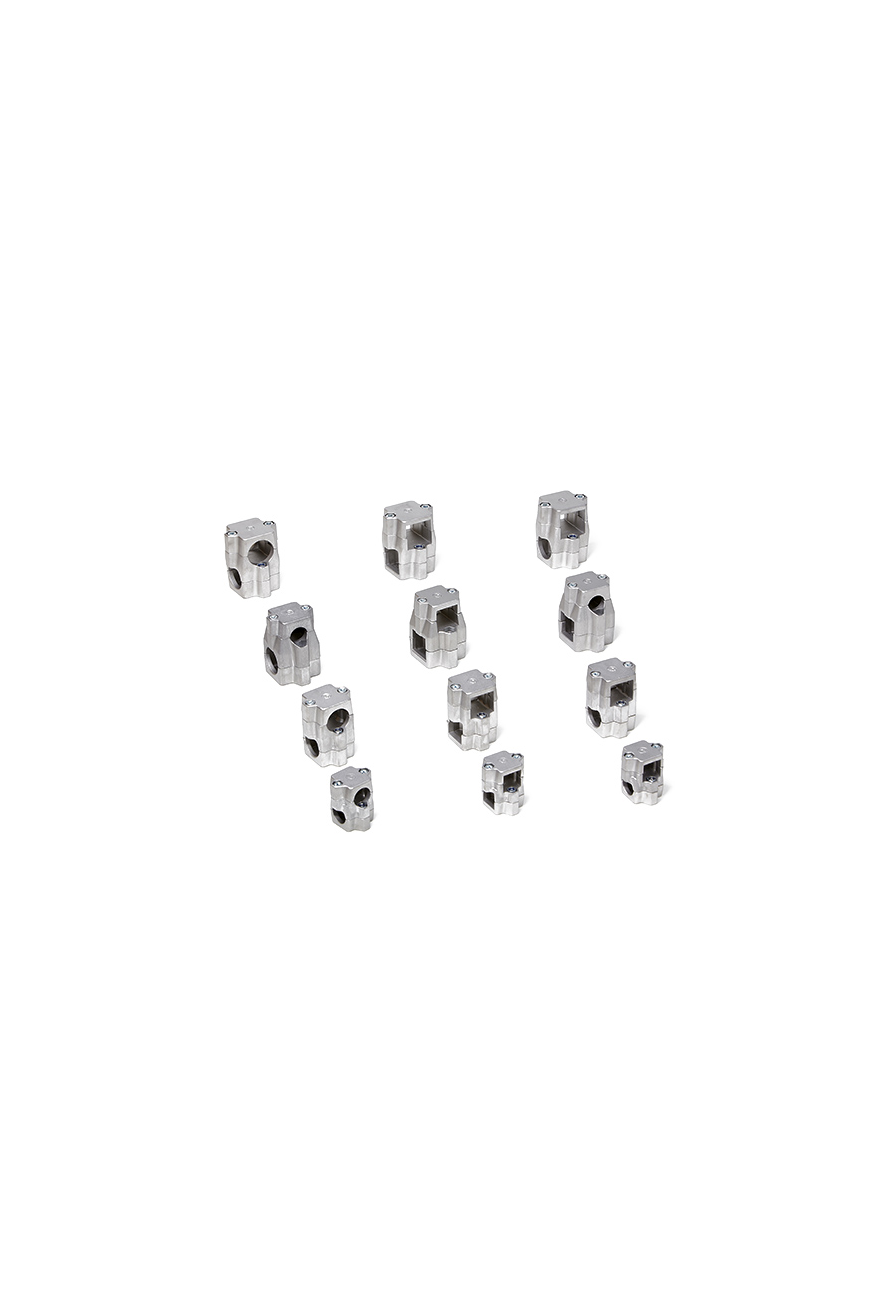

Multi-piece design of

Standard Series: KNR 20, 25, 30 mm,

KNR 40, 42, 45, 48, 50 mm.

Intermediate Series: KNRZ 30, 32, 35, 40 mm.

Universal Series: KUR 30, 32, 35, 40 – 40, 42, 45, 48, 50 mm.

Multi-piece design of

Standard Series: KNV 20, 25, 30 mm,

KNV 40, 42, 45, 48, 50 mm.

Intermediate Series: KNVZ 30, 32, 35, 40 mm.

Universal Series: KUV 30, 35, 40 – 40, 45, 50 mm.

Multi-piece design of

Standard Series: KNU 20, 25, 30 mm,

KNU 40, 42, 45, 48, 50 mm.

Intermediate Series: KNUZ 30, 32, 35, 40 mm – 30, 35, 40 mm.

Universal Series: KURV 30, 32, 35, 40 – 40, 45, 50 mm,

KUVR 30, 35, 40 – 40, 42, 45, 48, 50 mm.

Aluminium_Cross_Clamps.pdf
