Stainless Steel Joint and Strap Clamps


Stainless steel strap- and joint clamp connectors are universally applicable elements for connecting tubes or shafts at any angle to each other or to a mounting surface.

These one-piece components with clamping slots develop an extremely precise and stable connection between tube and bore hole due to mechanically machined holes!

Here, four types can be distinguished, on the one hand have a mounting surface with base plate or to the other tube holders at different angles to the mounting surface with through or blind holes. Thus, two strap clamp connectors can be combined particularly well as joint clamp connectors!

For simplified clamping, all stainless steel tube connectors of the compact series have additional relief slots in the through holes.

The following model series and diameters are available as standard parts with matt blasted surface:

One-piece design with clamping slots.

Compact series:
LAKE without bore hole, even surfacewith base plate and 2 mounting holes.
LBKE 12, 14, 15, 16, 18 mm. Through hole in the same direction as screw hole.
LCKE 12, 14, 15, 16, 18 mm. Tube holder as blind bore.
LDKE 12, 14, 15, 16, 18 mm. Through hole 90 ° offset to the screw hole.

Two-piece design of the Compact series 12, 14, 15, 16, 18 mm, stepless adjustment.
GAKE with base plate and 2 mounting holes.

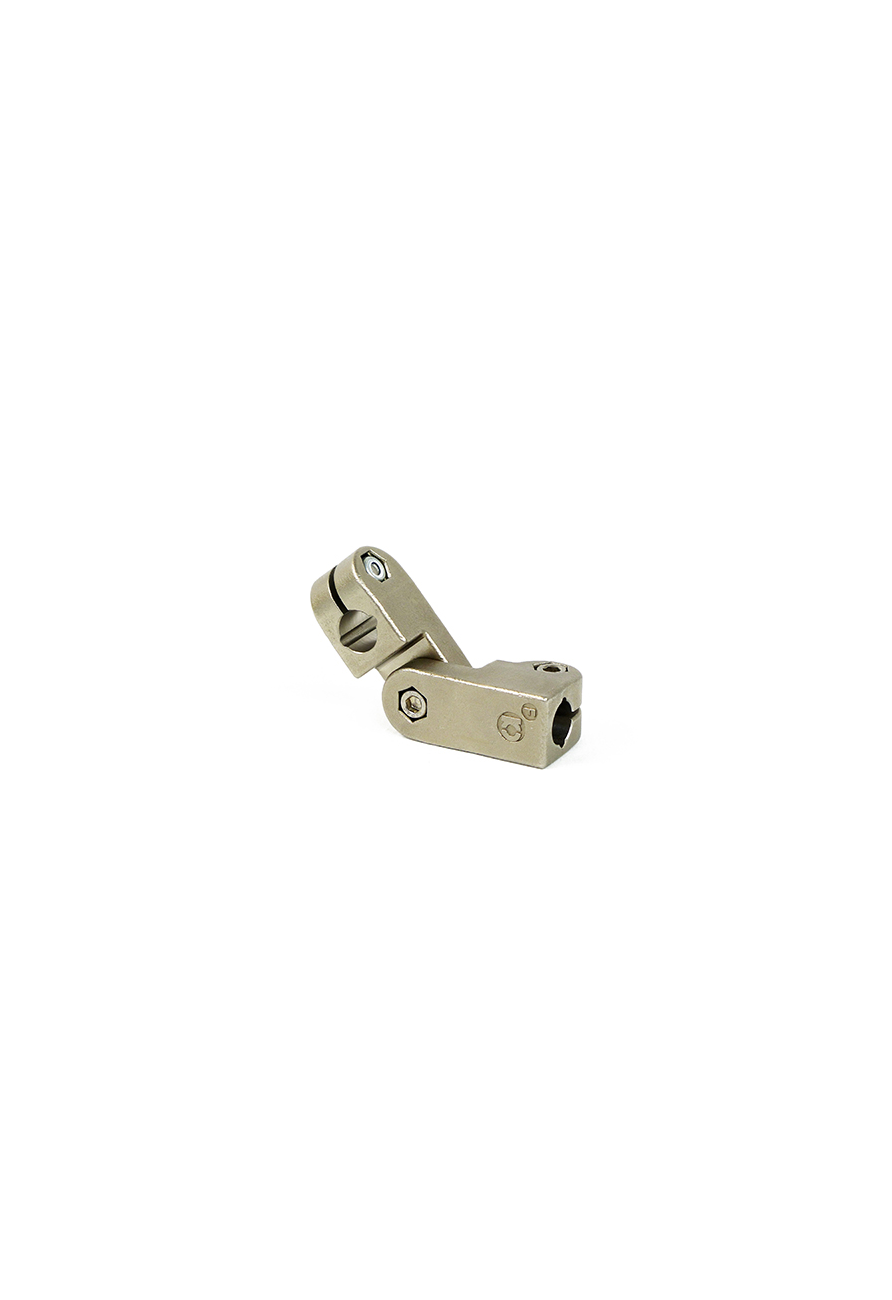

GCKE through-hole and blind hole.
GEKE two tube receptacles in blind holes.
GGKE through-hole and blind hole.
