DELTA 6000 PHARMA

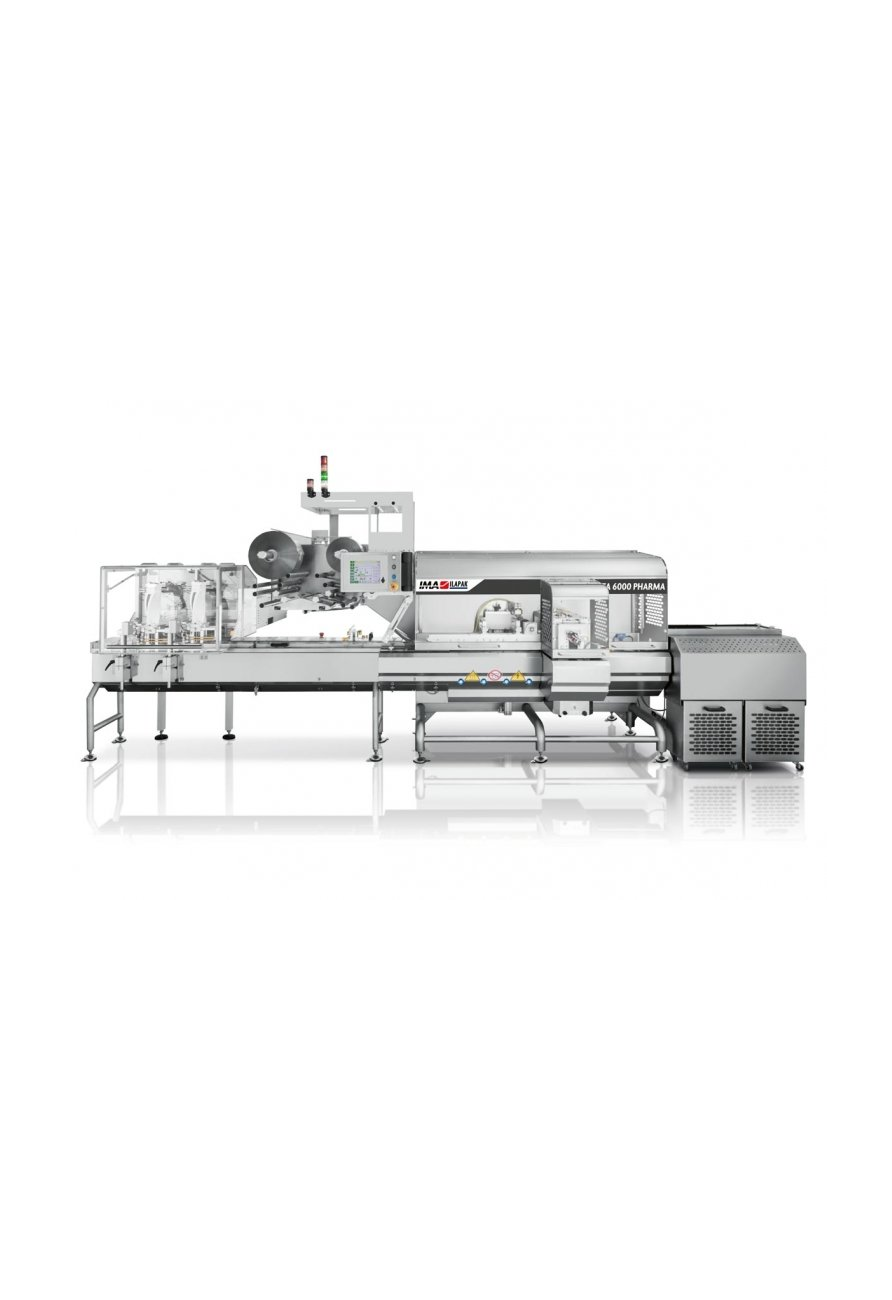

The Delta 6000 is a fully modular design flow wrapping machine that offers high-speed long dwell single jaws up to 200ppm and multiple jaws up to 400ppm. Its heavy duty and reliable design allows the Delta 6000 to be integrated in automatic packaging lines. IMA-Ilapak’s Delta 6000 offers as option wide solutions of features such as printing OCR/OCV, automatic feeding, 21 CFR Part 11 and clean room compliance. Machines are available in stainless steel or painted finish, top and bottom film feeding.
Additional information
- Machine Speed up to 400 cycles per minute. Production output depends on film sealability and product characteristics.
- Film Cut-Off Min 60mm - 2.4” / Max 600mm - 24”. Depending on film and product characteristics.
- Wrapping Materials Alu based material, laminated, co-extruded and all sealable films.
- Film Reel Max Weight Depending on film reel width, up to 75 kg - 165 lbs.
- Electronic Platform Industrial PC.
- Power Requirement From 220 to 480 V, 50/60 Hz, 7kVA.
- Compressed Air 6 bar, 200 l/min.
- Machine Weight 1400 Kg - 3100 lbs.
PRODUCT DIMENSIONS
- length Up to 500mm - 20” standard.
- width Up to 300mm - 11.8” standard.
- height Up to 110mm - 4.3” standard.
FILM REEL DIMENSIONS
- coreø 76.2mm - 3” standard, 152.4mm - 6” on request.
- outerø 400mm - 15.7”.
- width 500mm - 19.7” standard, 650mm - 25.6” on request.
