DELTA 6000 R

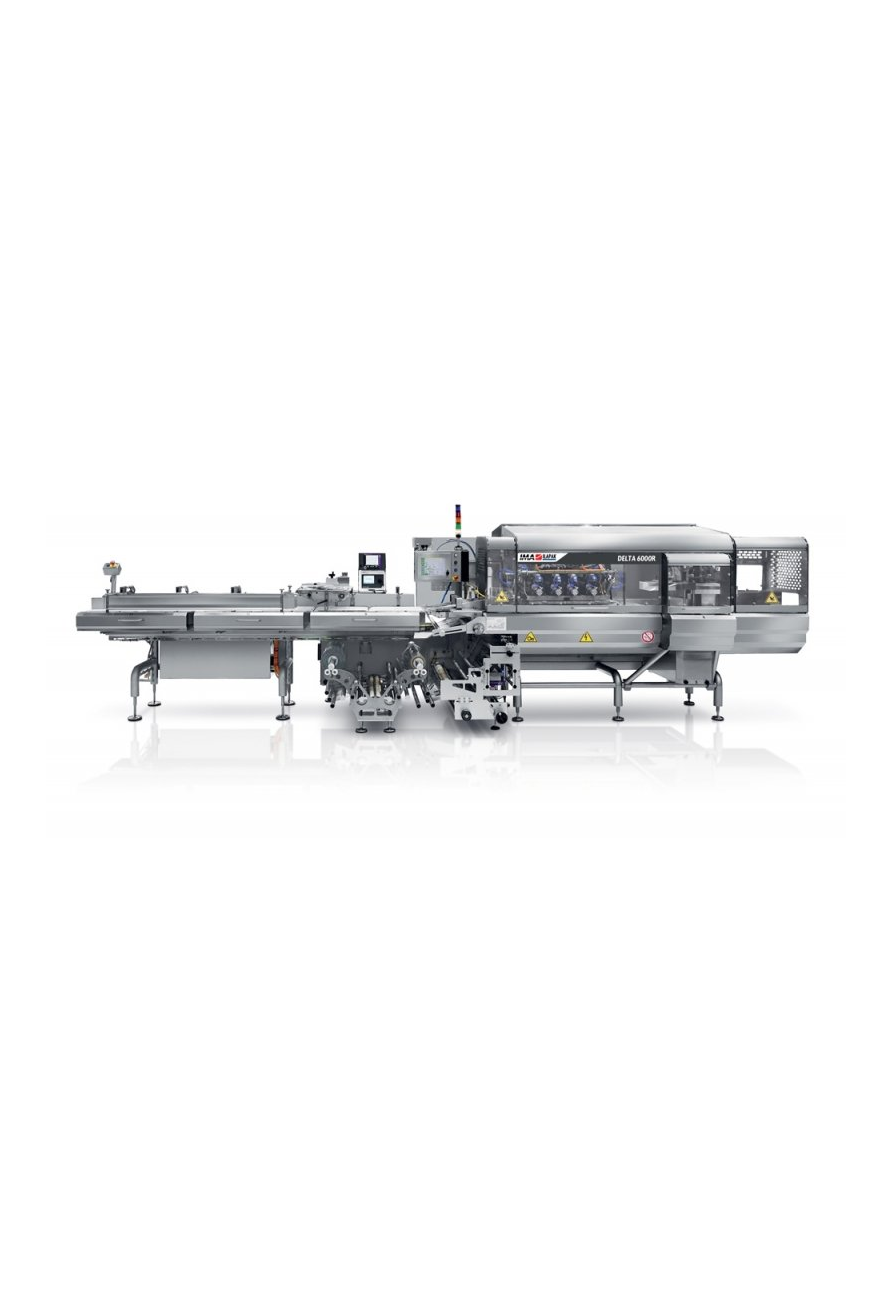

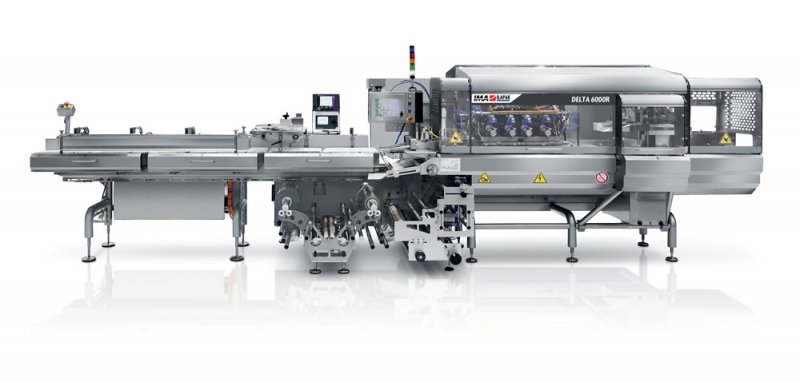

The Delta 6000 R is a new fully modular design flow wrapping machine that offers complete IP65 protection, enabling full wash down capability, even of the sealing elements. This flow wrapping platform incorporates a new higher speed long-dwell sealing system for MAP applications up to 150ppm. Ideal for meat, cheese, pizza and bakery products.
Additional information
  • Machine Speed up to 150 cycles per minute. Production output depends on film sealability and product characteristics.
  • Film Cut-Off Min 100mm - 4.0” / Max 1200mm - 47”. Depending on film and product characteristics.
  • Wrapping Materials Shrink barrier films, laminated, co-extruded and all sealable films.
  • Film Reel Max Weight Depending on film reel width, up to 75 kg - 165 lbs.
  • Electronic Platform Industrial PC. Other electronic control platform on request i.e. Allen Bradley, Siemens, Elau-Schneider, B&R.
  • Power Requirement From 220 to 480 V, 50/60 Hz, 7kVA.
  • Compressed Air 6 bar, 200 l/min.
  • Machine Weight 1400 Kg - 3100 lbs.

PRODUCT DIMENSIONS

  • length up to 650mm - 25.6” standard. Up to 1000mm - 39.0” on request.
  • width 150mm - 5.9” on request (jaws 190mm - 7.5”). 300mm - 11.8” standard (jaws 345mm - 13.6”). 420mm - 16.5” on request (jaws 450mm - 17.7”).
  • height up to 110mm - 4.3” standard (centre-axle 180). Up to 150mm - 6.0” on request (centre-axle 225). Up to 60mm - 2.4” on request (centre-axle 140).

FILM REEL DIMENSIONS

  • coreø 76.2mm - 3” standard. 152.4mm - 6” on request.
  • outerø 350mm - 13.8” standard for reel web width up to 800-900mm.  400mm - 15.7” on request for reel web width up to 500-650mm.
  • width 500mm / 650mm - 19.7” / 25.5” standard. 800mm / 900mm - 31.5” / 35.5” on request.
