VEGATRONIC CF

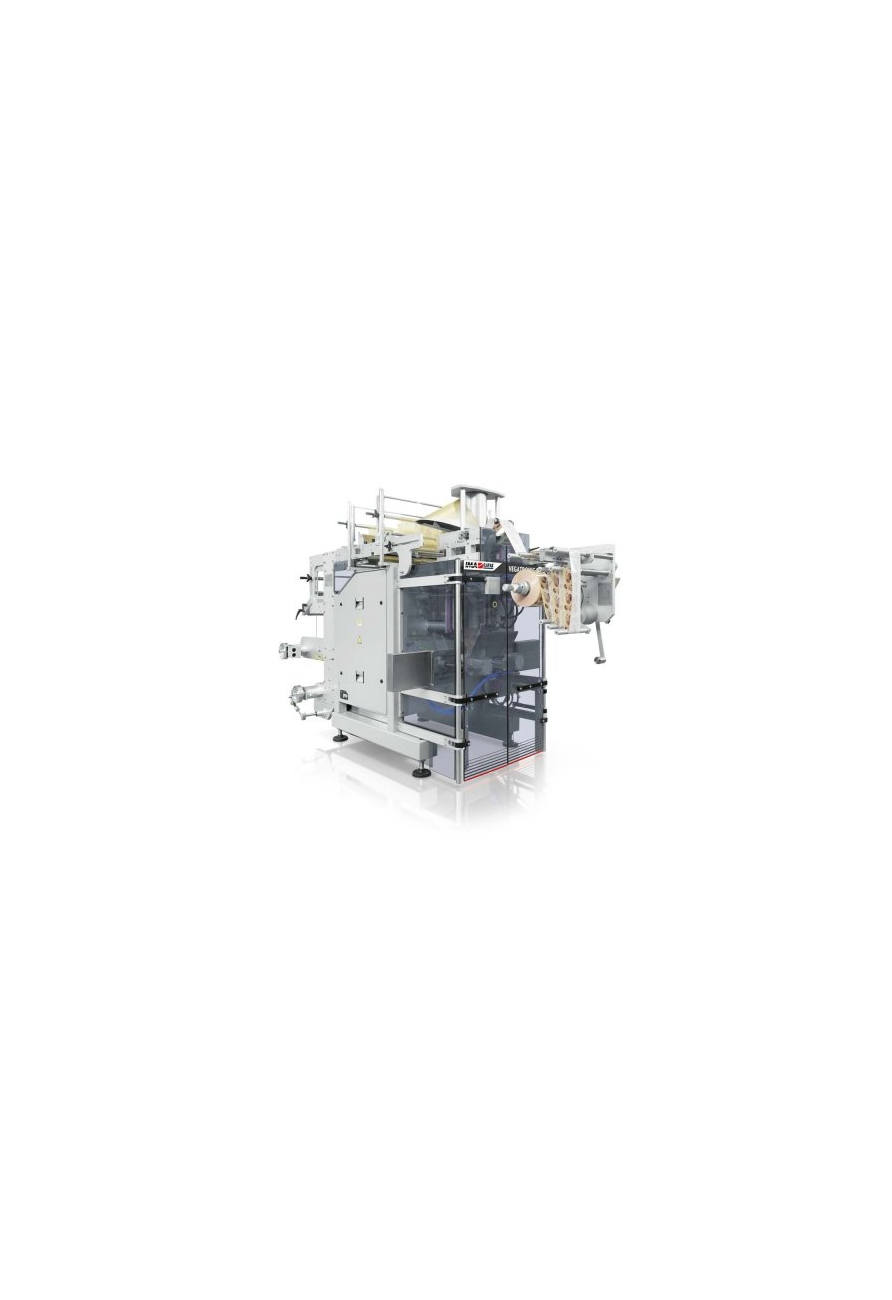

IMA Ilapak's Vegatronic CF (Carryfresh) is a robust, compact footprint intermittent machine conceived for packaging a variety of fresh products such as potatoes, onions, carrots and many more.
Additional information
  • Machine Speed 80 cpm.
  • Wrapping Materials heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene.
  • Electronic Platform Omron PLC, Allen Bradley PLC*, Siemens PLC*.
  • Program Memory 40 programs.
  • HMI Colour TFT 6” touch screen, Allen Bradley*, Siemens*.
  • Power Requirement AC 400 V+/- 5%, 3 phase, neutral, 50/60 Hz, 6.2 kW, 10,3 A.
  • Compressed Air up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE.
  • Electrical cabinet Right-hand version, left-hand version* or remote cabinet*.
  • Machine dimensions (W x D x H) 2133 x 3159 x 1686 mm (84 x 124.5 x 66.5”).
  • Machine finishing Electrostatic epoxy powder coating, stainless steel*.
  • Machine Weight 900 kg (1985 lb).

BAG DIMENSIONS

  • Max. width 380 mm (15”), 370 mm (14.5”) for LDPE.
  • Min. width 50 mm (2”).
  • Max. length** 380 mm (15”).

FILM REEL DIMENSIONS

  • Max. width 780 mm (30.75”), 830 mm (32.75”)*.
  • Max. outer diameter 500 mm (19.75”).
  • Core diameter 76 mm (3”), 152 mm (6”)*.

* optional
** greater length feasible on request
