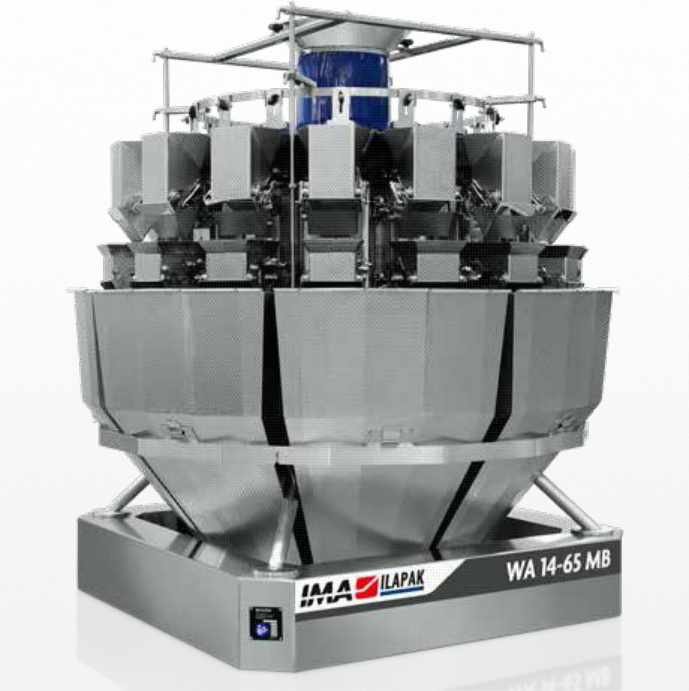

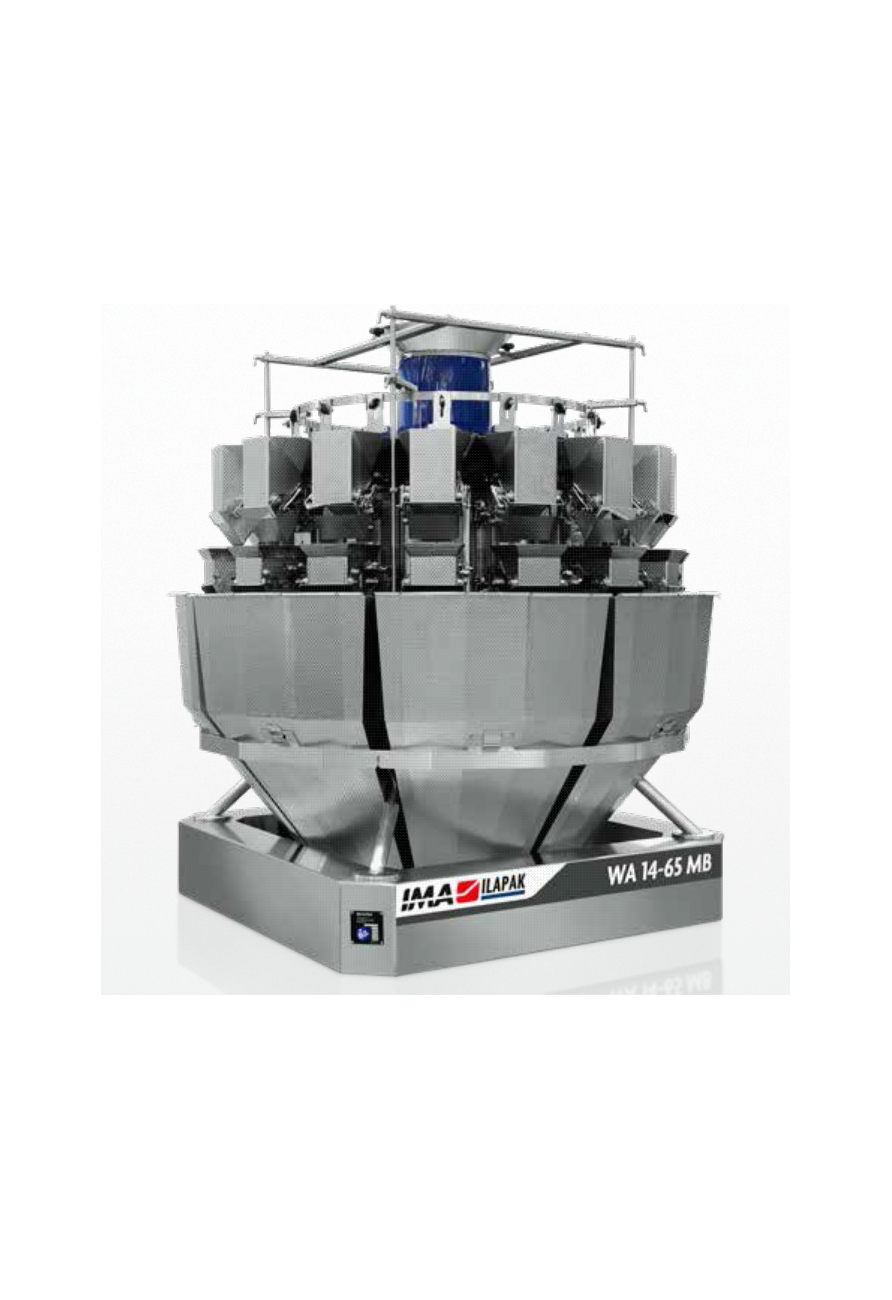

WA 14-65 MB
Ilapak Multi-Head weigher dedicated to leafy products (i.e.fresh cut salad, spinach, cabbage etc.) and fresh vegetables. Hygienic design weigher suitable for wash down environments with easy detachable product contact parts.
Additional information
- Max. speed 90 wpm.
- Weigh heads 14.
- Bucket volume 6,5 l.
- Max. discharge volume (single dump) 16,3 l.
- Discharge weight range (single dump) 60g - 2000g.
- Max. piece length 160 mm.
- Product distribution vibratory or rotary distribution cone with loadcell to control product infeed.
- Product contact parts Embossed Stainless Steel AISI 304.
- Drive Springless, high speed stepper motors.
- Loadcells C3 accuracy class, OIML approved R76 class.
- Electronic platform Industrial PC.
- HMI 12” (18” *) colour touch screen with remote control capability (augmented reality feature*).
- Program memory over 1000 recipes.
- Power supply (opt. excluded) 230 Vac±5%, 1 ph, neutral, GND, 50/60 Hz, 1.2 kW, 6 A (3 A @ 480 V).
- Compressed air (opt. excluded) 180 l/min @ 7 bar.
- Machine dimensions (W x D x H) 2089 x 2089 x 2795 mm (82.25 x 82.25 x 110’’).
- Machine weight 1050 kg.
* optional
