CSA 955

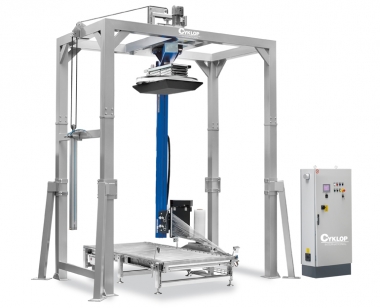

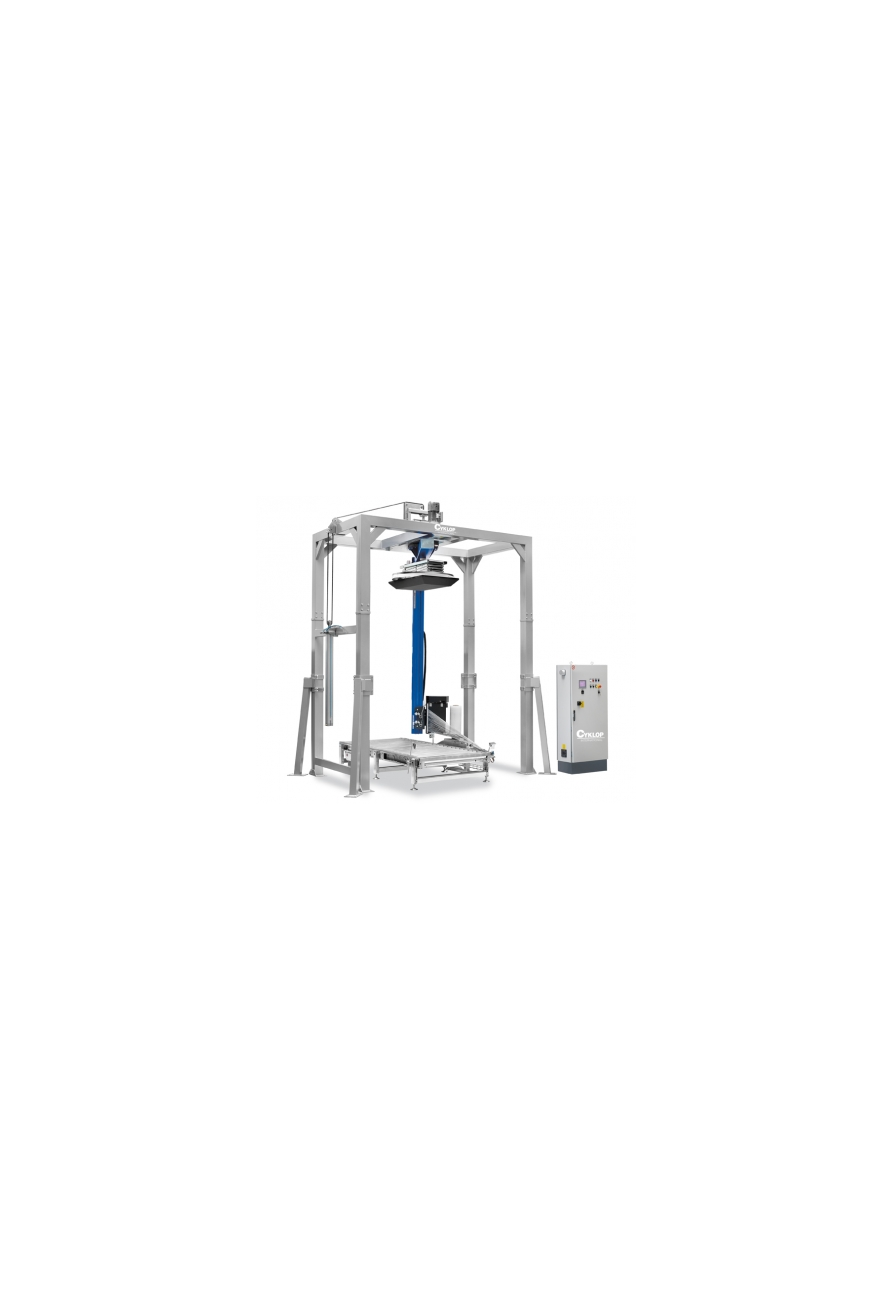

Fully automatic free arm stretch wrappers CSA 955/965/975
CSA 955/965/975 stretch wrappers can be integrated easily into an existing or new line. Film wrappers will ensure that the total costs of your production line are reduced. This results from the machine’s high stretch percentage and maintenance-friendly nature. Main differences between machine models are handles speed per hour and wrapping speed rpm.- Driven by a heavy-duty turntable with external gearing.
- Pre-stretch 150% – 200% – 250%.
- Handles: CSA 955 up to 55 pallets per hour. CSA 965 up to 65 pallets per hour. CSA 975 up to 75 pallets per hour.
- Wrapping speed: CSA 955-25 rpm. CSA 965-28 rpm. CSA 975-max 34 rpm.

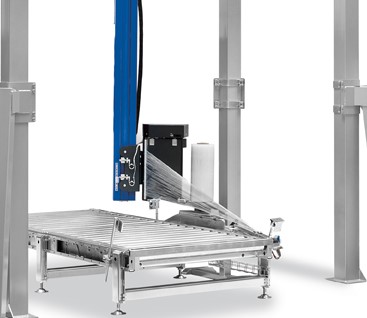

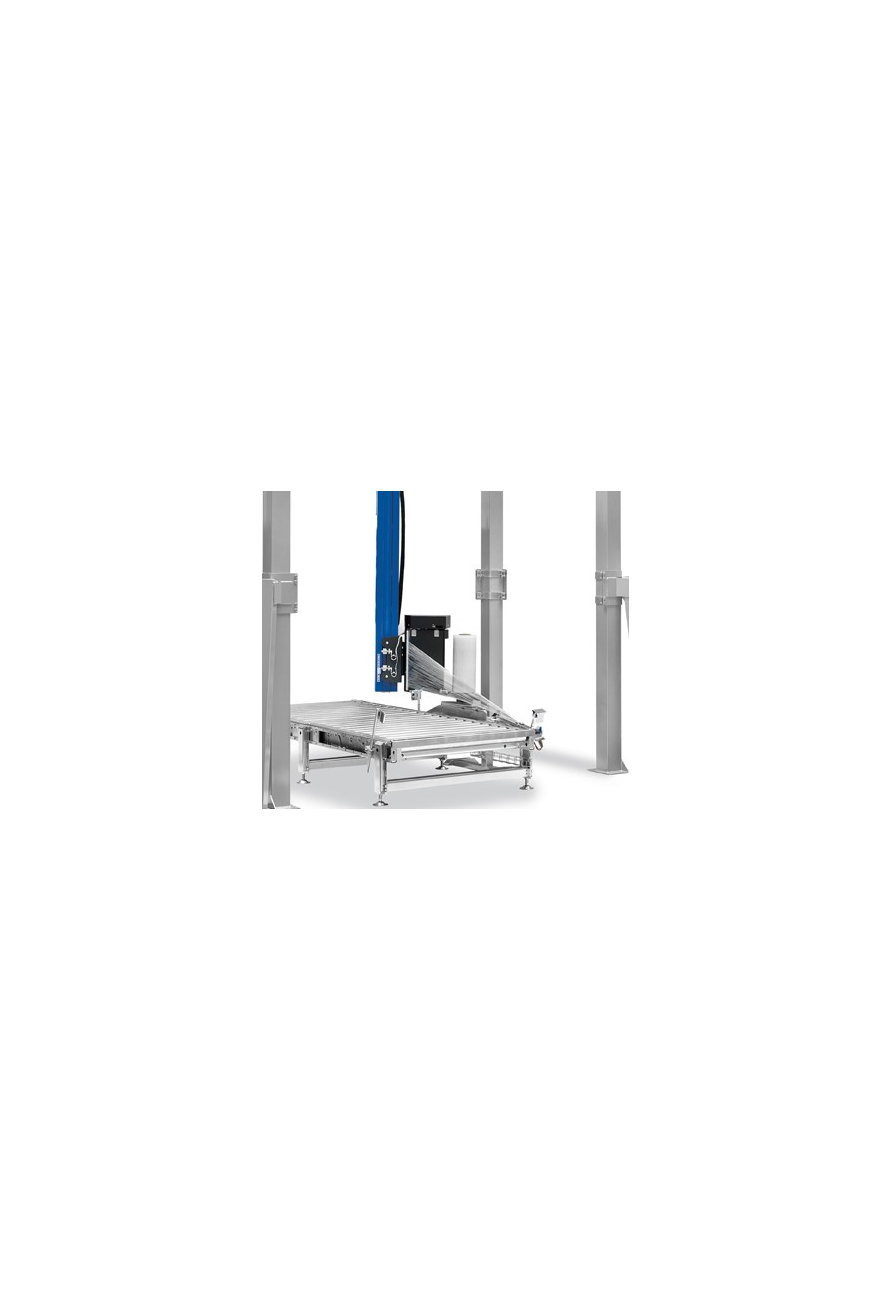

- Simple replacement of film roll with rapid-load system.
Additional information
Technical data CSA 955
- Standard power supply 400 V - 50 Hz.
- Protection on electric system & motors IP 54.
- Max. pallet dimensions 1200 x 1200 mm.
- Standard pallet height 2200 mm.
- Max. rotation speed 23 rpm.
- Capacity Up to 55 pallets per hour.
- Operating pressure 6 Bar.
Technical data CSA 965
- Standard power supply 400 V – 50 Hz.
- Protection on electric system & motors IP 54.
- Max. pallet diemensions 1200 x 1200 mm.
- Standard pallet height 2200 mm.
- Max. rotation speed 28 rpm.
- Max. capacity Up to 65 pallets per hour.
- Operating presure 6 bar.
Technical data CSA 975
- Standard power supply 400 V – 50 Hz.
- Protection on electric system IP 54.
- Max. pallet dimensions 1200 x 1200 mm.
- Standard pallet height 2200 mm.
- Max. rotation speed 33 rpm.
- Capacity per hour Up to 75 pallets.
- Operating pressure 6 bar.
