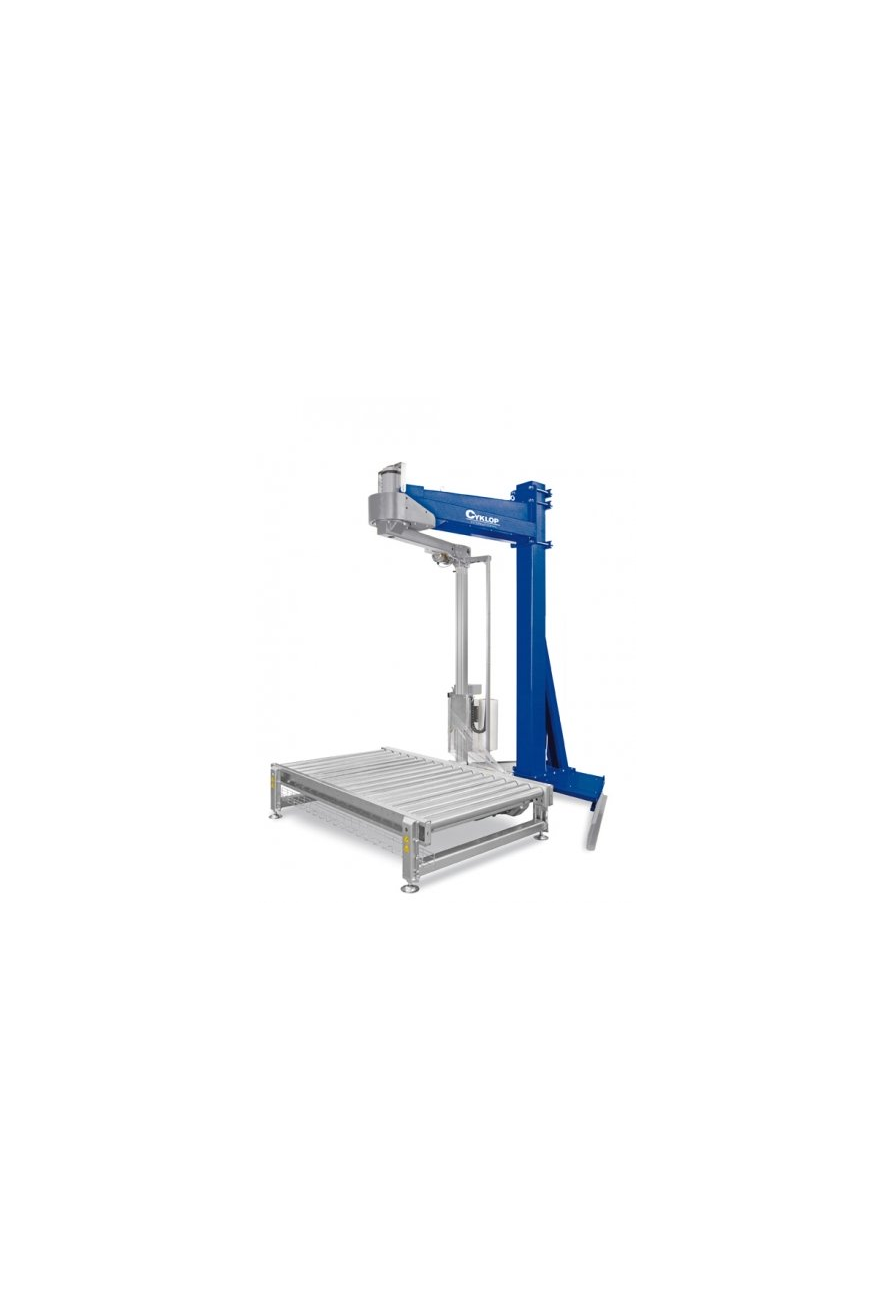

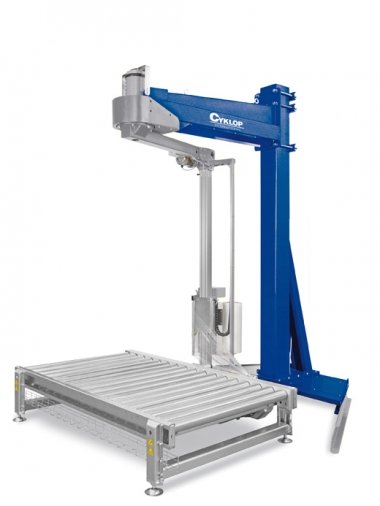

CSA 915
Fully automated pallet wrapper which facilitates cost savings
This CSA 915 free arm pallet wrapper can be integrated easily into an existing or new line. This film-wrapping machine’s combination of high stretch percentage and low maintenance ensures overall cost savings in your production line.
- Driven by a heavy-duty turntable with external gearing
- Pre-stretch 150% – 200% – 250%
- Handles up to 15 pallets per hour
- Possibility to save 6 wrapping programs
Additional information
Technical data
- Standard input voltage 400V - 50 Hz.
- Protection on electric system & motors IP 54.

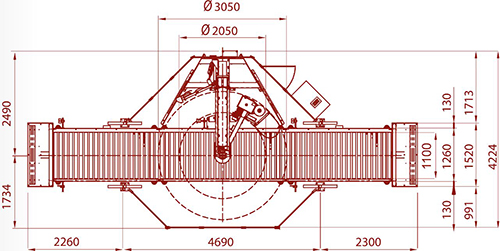

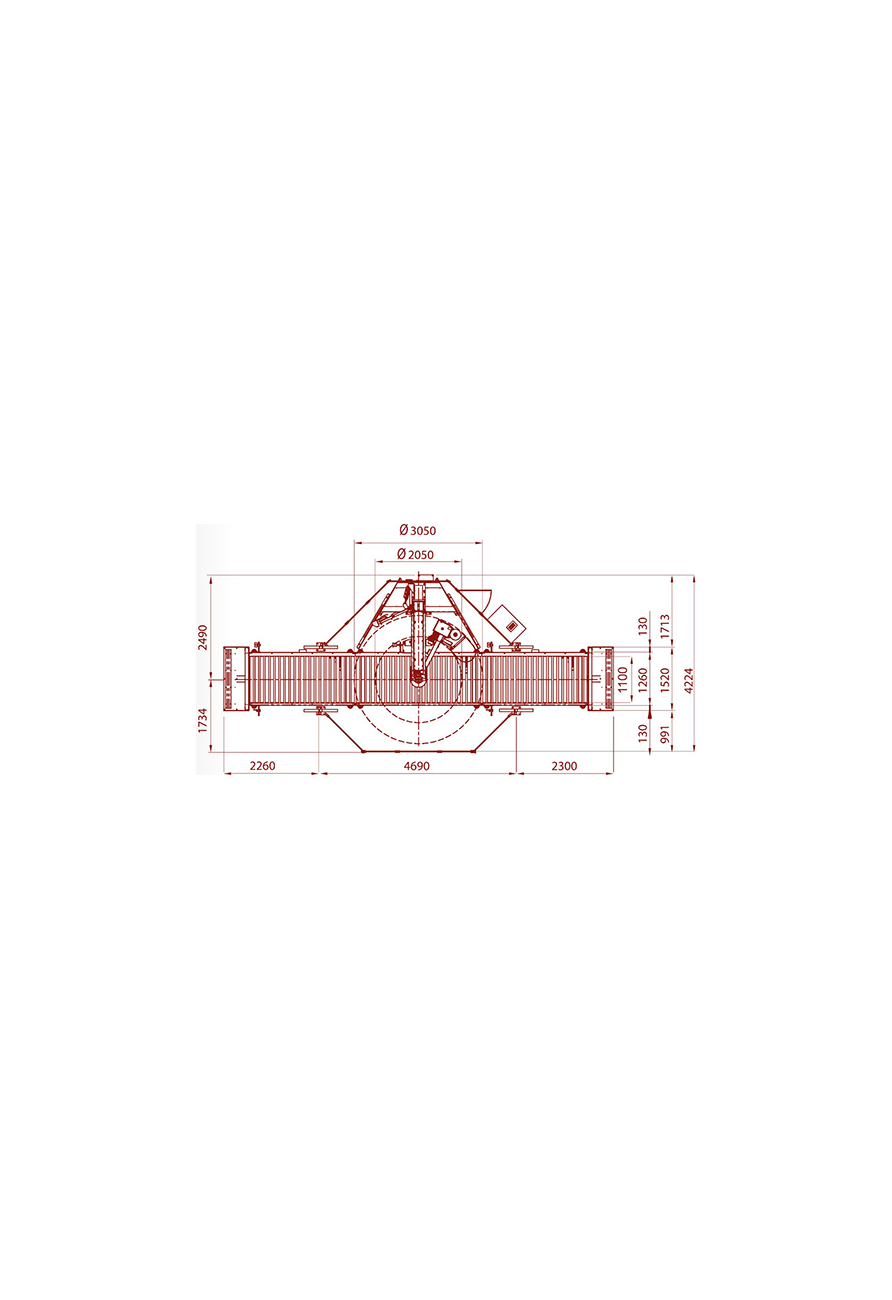

- Max. pallet dimensions 1200 x 1200 mm.
- Standard pallet height 2400 mm.
- Maximum rotation speed 12 rpm.
- Production capacity Up to 15 pallets per hour.
- Operating pressure 6 bar.
