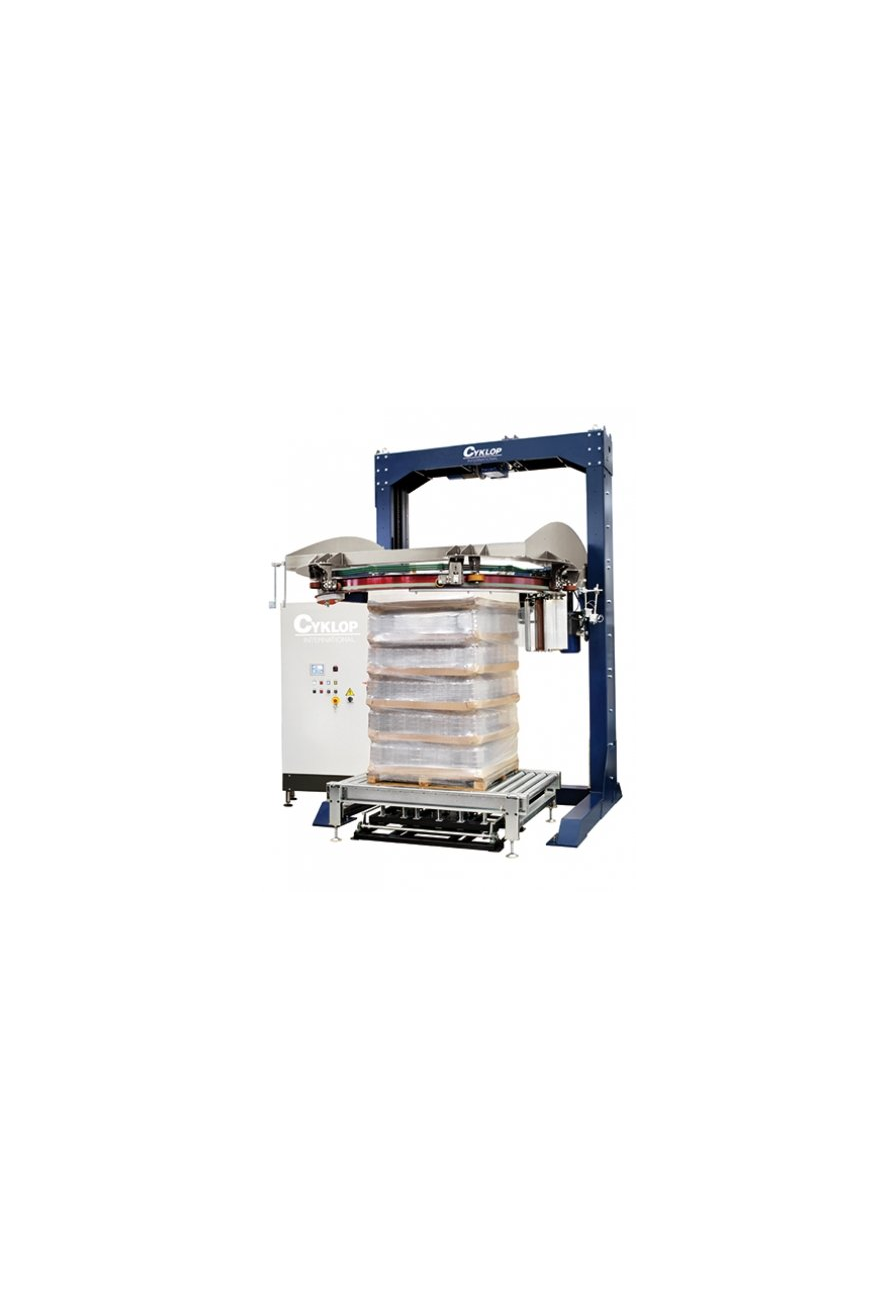

CSR 9120
Fully automatic ring stretch wrapper – up to 120 pallets / hour
The CSR 9120 pallet wrapper is a ring wrapping machine that is characterised by a unique external pre-stretch drive system. This robust machine can be easily integrated into a new or existing production line. The purchase of this film-wrapping machine will lead to cost savings due to its high pre-stretch percentage. The lifting frame is located on one side of the track which makes the machine extremely accessible. The patented drive system for the pre-stretch unit does not need sliding contacts.- Flat-belt drive
- Without electronic components on the turning ring
- Flat-belt drive
- With motorised pre-stretch system (150 – 200 – 280% stretch)
- Handles up to 120 pallets per hour
- Compact design
Additional information
Technical data
- Standard power supply 400 V - 50 Hz.
- Protection on electric system IP 54.
- Max. pallet dimensions 1200 x 1200 mm.
- Standard pallet height 2000 mm.
- Max. rotation speed 65 rpm.
- Capacity per hour up to 120 pallets.
- Operation pressure 6 Bar.
