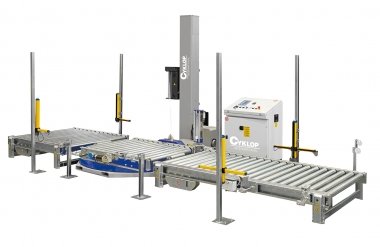

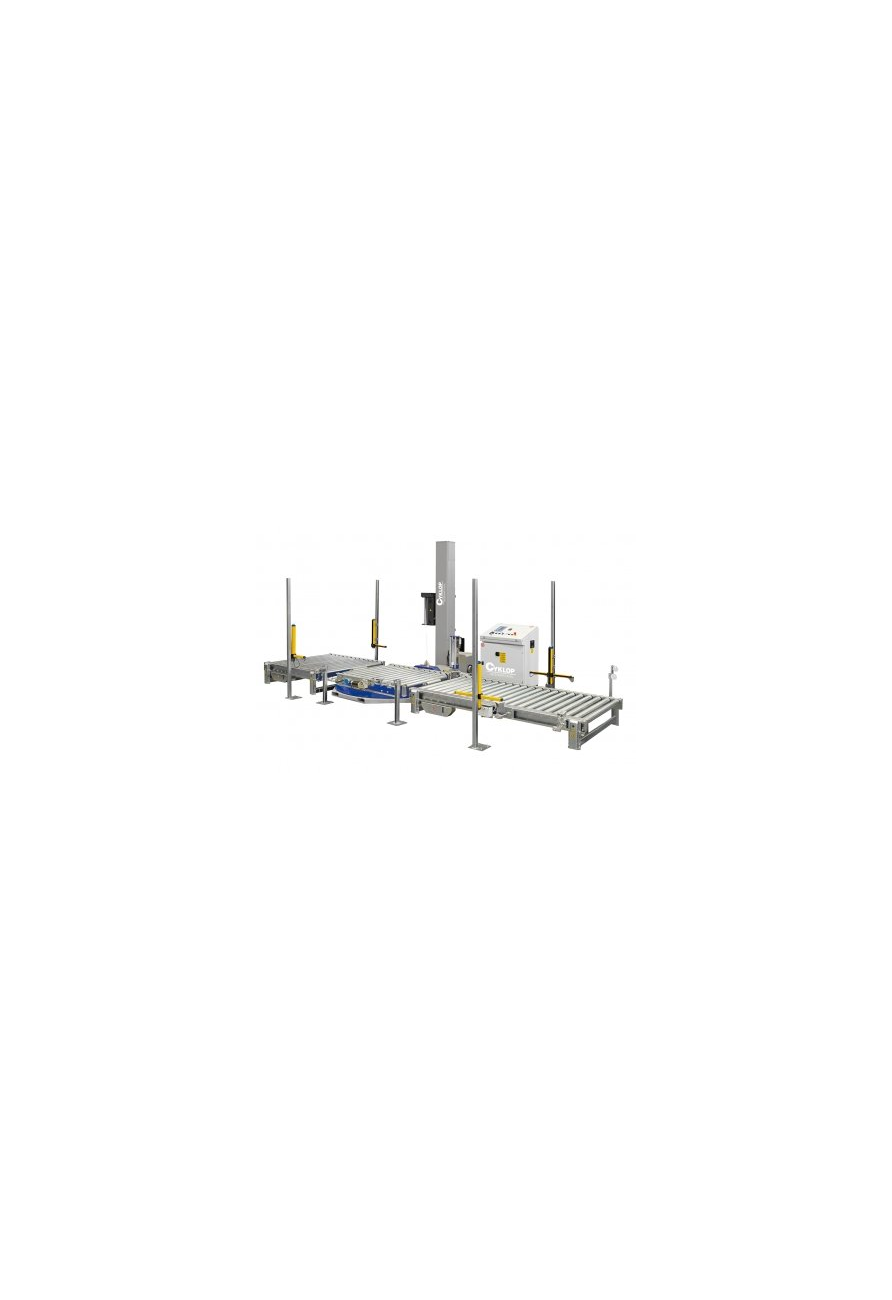

CST 915

Fully automatic, turntable pallet wrapper

The CST 915 pallet wrapper is a film wrapper that can be easily integrated into an existing or new line. This film-wrapping machine’s combination of high stretch percentage and low maintenance ensures overall cost savings in your production line.
  • Chain-driven
  • Motorised pre-stretch system (150 -200 – 250% stretch)
  • Wrapping speed 12 rpm
  • Handles up to 15 pallets per hour

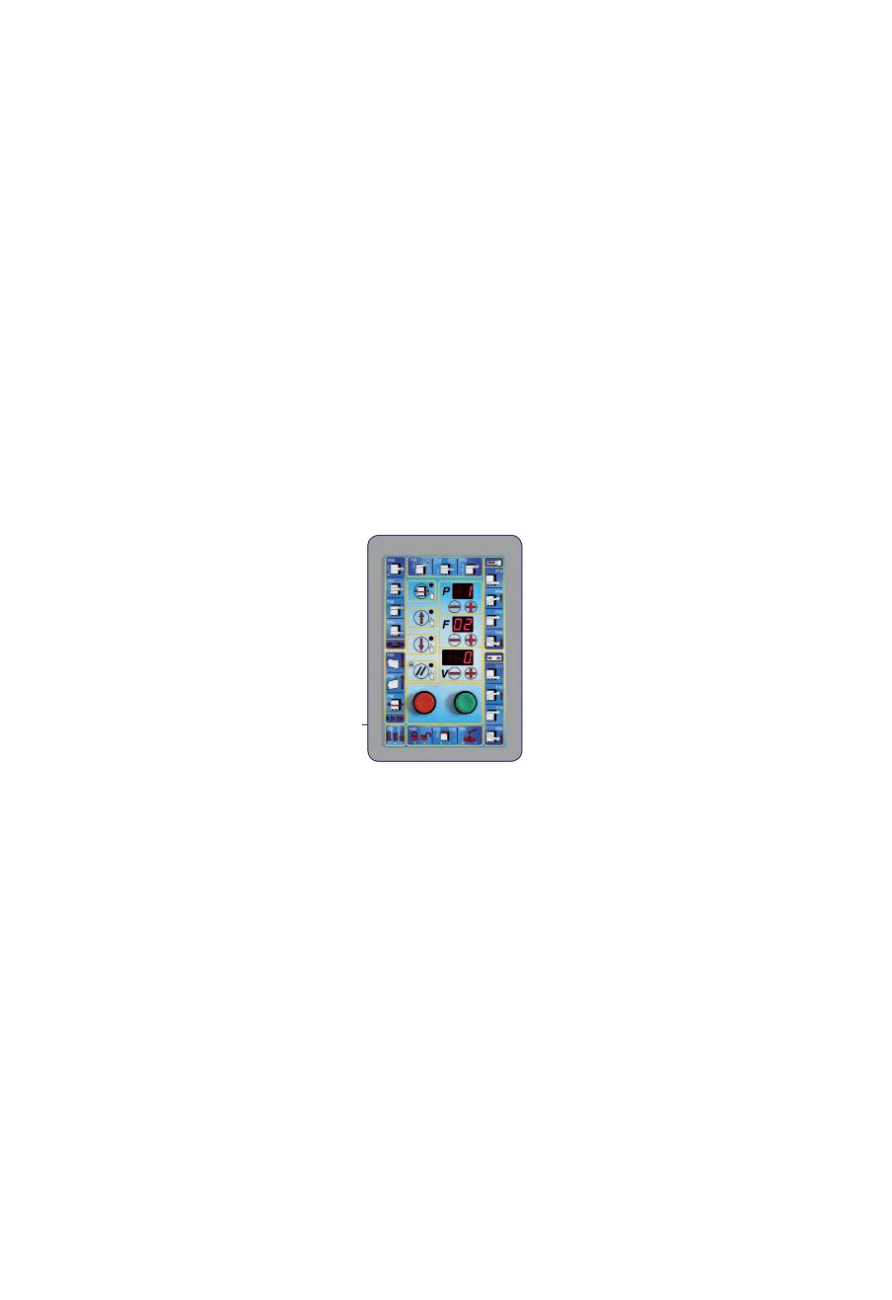

  • Possibility to save 6 wrapping programs

Additional information

Technical data

  • Standard power supply 230/400 V - 50 Hz - 1/3.
  • Protection on electric system IP 54.
  • Max. pallet dimensions 1000 x 1200 mm.
  • Standard pallet height 2500 mm.
  • Max. pallet weight 1500 kg.
  • Standard diameter Ø 1800 mm.
  • Transport height 190 - 200 mm.
  • Max. rotation speed 12 rpm.
  • Capacity per hour Up to 15 pallets / hour.
  • Operating pressure 6 Bar.
