XF 172 M
Fully automatic horizontal strapping

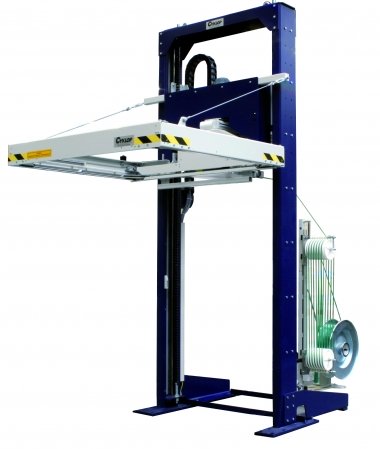

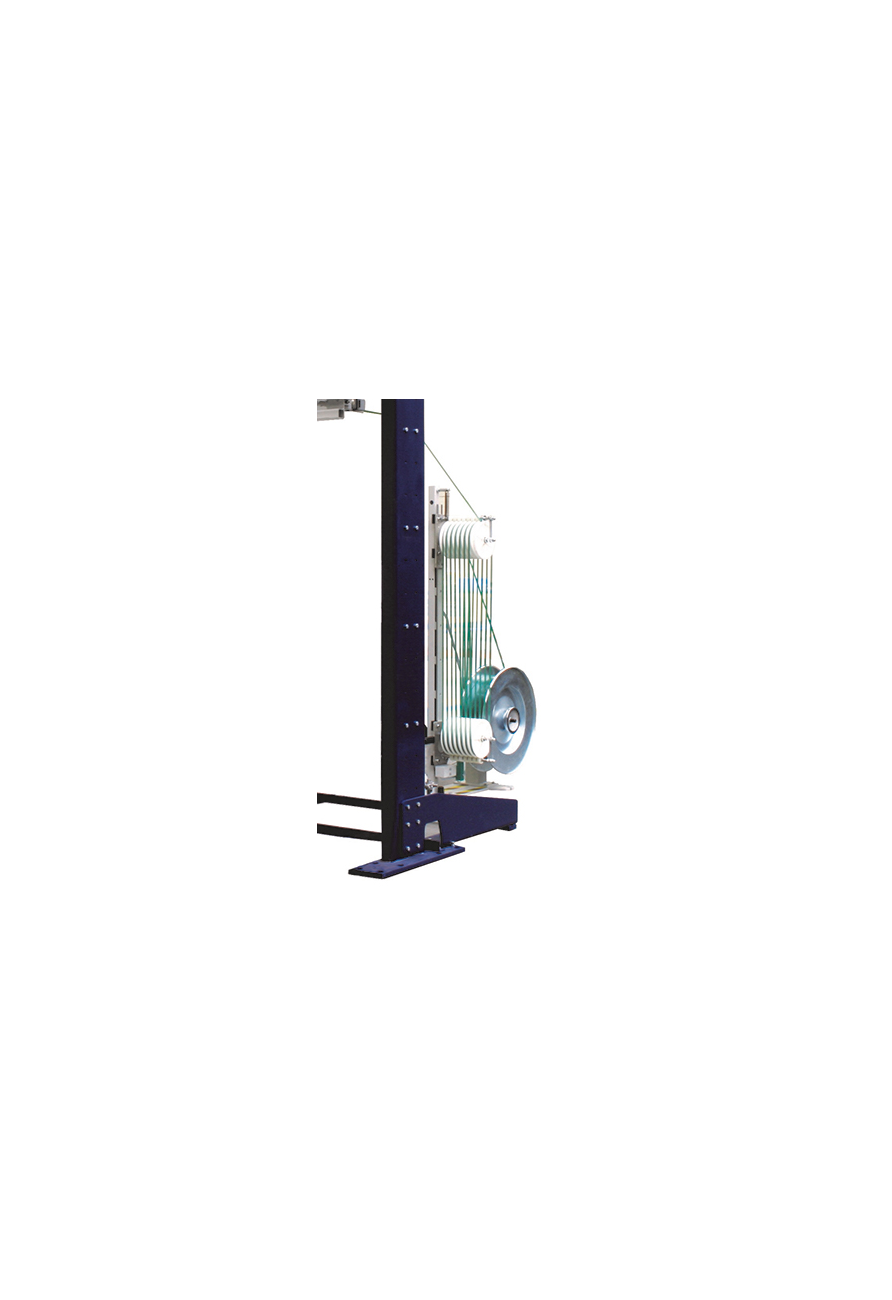

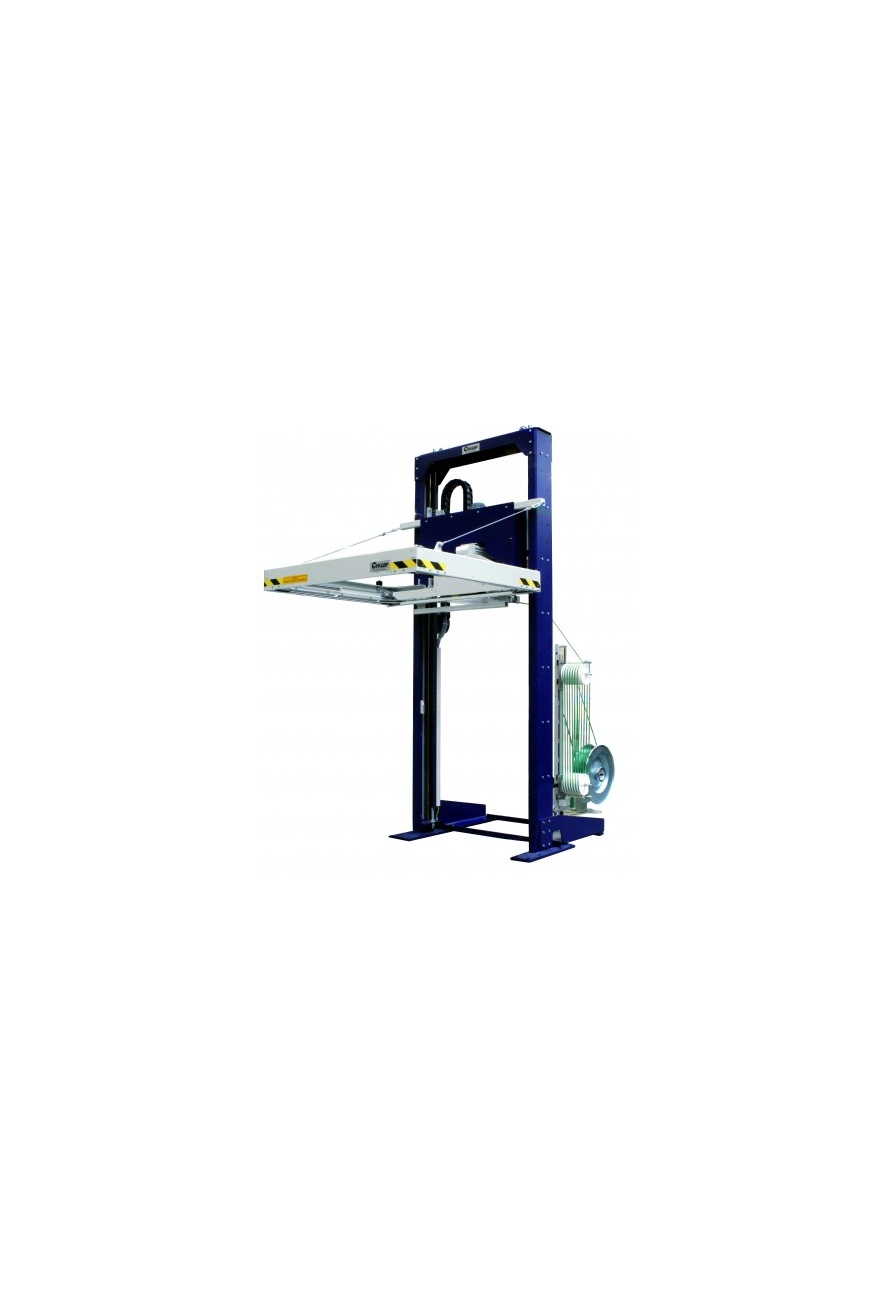

The strapping machine XF 172 M is a fully automatic strapping machine for horizontal strapping large quantities of different pallets with PP or PET strap. The strapping head and the tension compensator ensure that each strap is optimally tensioned. The strap guide makes sure that even with long lengths, the strap is always accurately positioned around the load. The height/position of the strap are easy to adjust.
- For PP and PET strap
- Horizontal strapping
- Tension up to 5,500 N
- Siemens PLC S7
- Simple to use with the Touch screen
- Pressure needed 6Bar
Additional information
Main Specifications
- Conveyor height: Min. 300 mm.
- Strap chute according to the principle of the raster technique, suitable for: Loads (L x W): 800 x 900 mm up to 1,400 x 1,400 mm.
- Machine height: 3,700 mm.
- Through-put height: Max. 2,320 mm.
- Package height: Min. 60 mm.
- Strapping height: Min. 45 mm (345 mm incl. Conveyor).
- Fully electrically driven. No pneumatics required.
