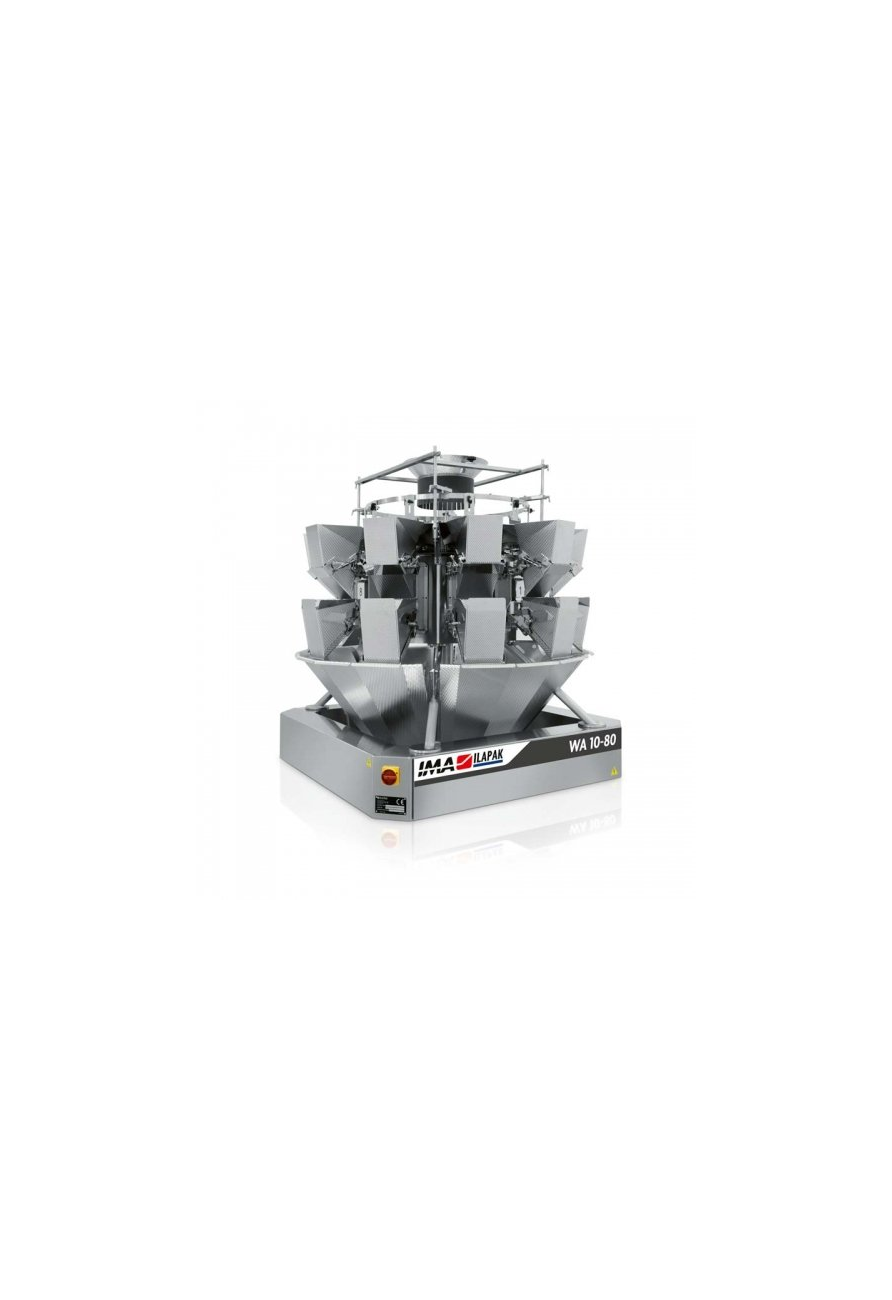

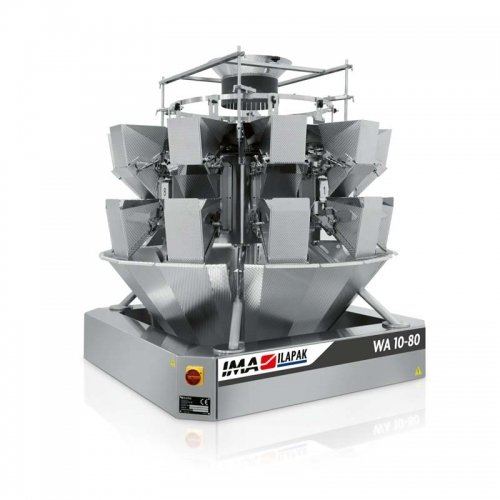

WA 10-80
An ultra-hygienic multihead combination weigher that is suitable for a full wash-down environment, available with small, medium and large volume hoppers for the best combination of speed and lowest give-away. One of a suite of food weighing solutions for free flowing and non-free flowing products, this weigher promises outstanding accuracy, reliability and  flexibility. Ilapak’s multihead weighers are tailored to match each customer’s products, to consistently and precisely weigh across a very wide spectrum of weights and speeds.
Additional information
  • Max. speed 50 wpm.
  • Weigh heads 10.
  • Bucket volume 8,0 l.
  • Max. discharge volume (single dump) 15 l.
  • Discharge weight range (single dump) 100 g - 3000 g.
  • Max. piece length 180 mm.
  • Product distribution Vibratory or rotary distribution cone with loadcell to control product infeed.
  • Product contact parts Stainless steel AISI 304. Embossed plate* and special coatings*.
  • Drive Springless, high speed stepper motors.
  • Loadcells C3 accuracy class, OIML approved R76 class.
  • Electronic platform Industrial PC.
  • HMI 12” (18” *) colour touch screen with remote control capability (augmented reality feature*).
  • Program memory over 1000 recipes.
  • Power supply (opt. excluded) 230 Vac±5%, 1 ph, neutral, GND, 50/60 Hz, 1.2 kW, 6 A (3 A @ 480 V).
  • Compressed air (opt. excluded) 180 l/min @ 7 bar.
  • Machine dimensions (W x D x H) 1639 x 1639 x 1613 mm (64.5 x 64.5 x 63.5’’).
  • Machine weight 750 kg.



    * optional
