CTT 1000
Fully automatic stretch wrapper – up to 70 pallets / hour

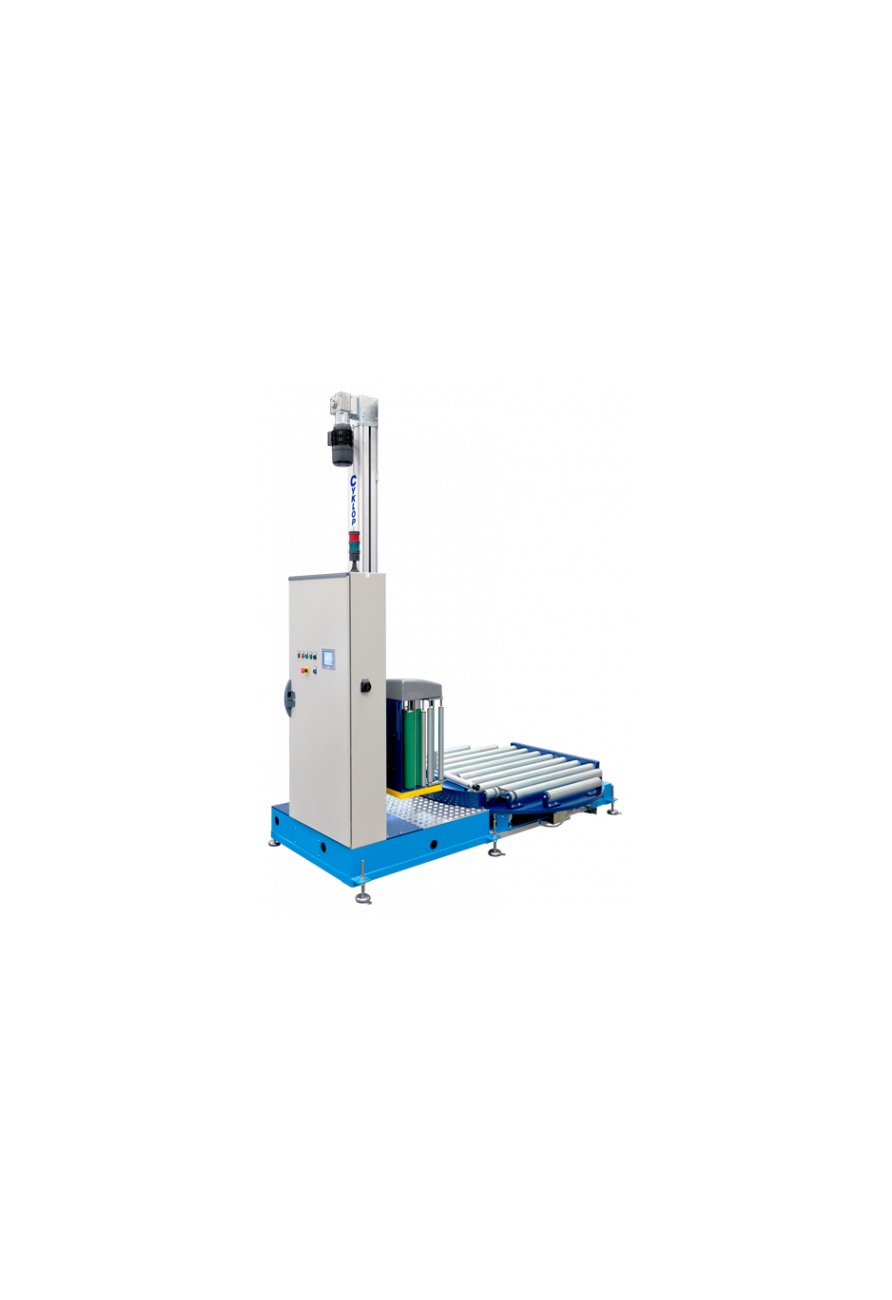

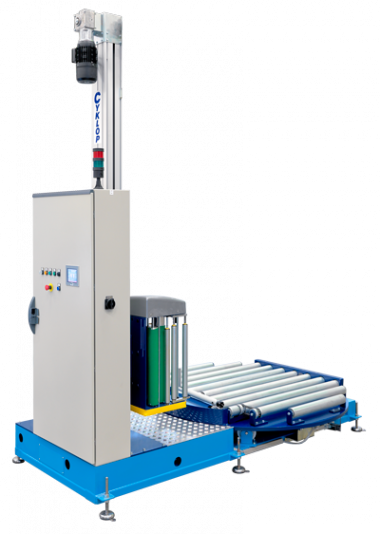

The CTT 1000 pallet wrapper is a fully automatic turntable film wrapping machine that is extremely suitable for installing into a fully automated line. This machine has a number of unique features including the automatic scanning of the pallet diameter. With its high processing speed and 400% pre-stretch, this pallet wrapper will bring cost savings to your process.- Driven by geared transmission mechanism
- With power pre-stretch plus unit (400% pre-stretch)
- Handles up to 70 pallets per hour
- Frequency-controlled turntable
- Wrapping speed 22 rpm
Additional information
Technical data
- Standard power supply 400 V - 50 Hz.
- Protection on electric system IP 54.
- Max. pallet dimensions 1000 x 1200 mm.
- Standard pallet height 2500 mm.
- Max. pallet weight 1500 kg.
- Standard diameter Ø 1800 mm.
- Transport height 375 - 500 mm.
- Max. rotation speed 20 rpm.
- Capacity per hour Up to 50 pallets.
- Operating pressure 6 Bar.
