IQ4 Pipeline

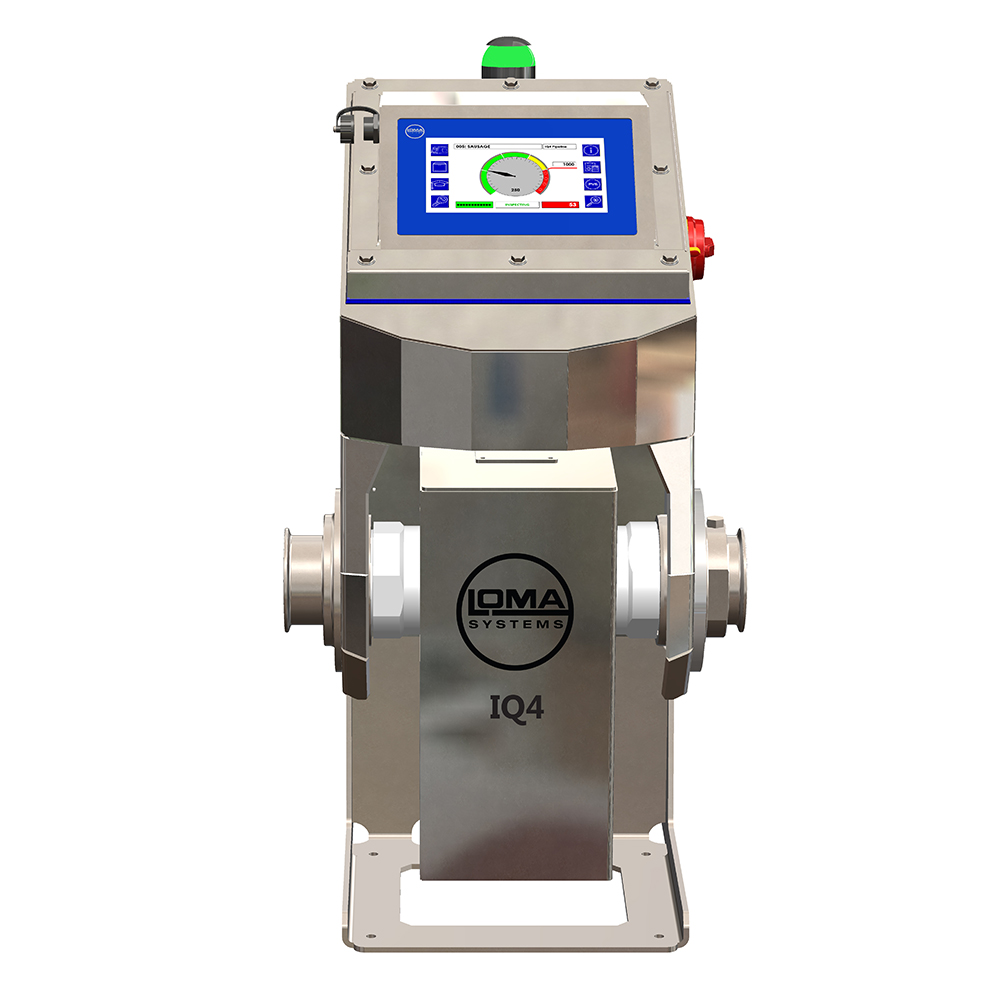

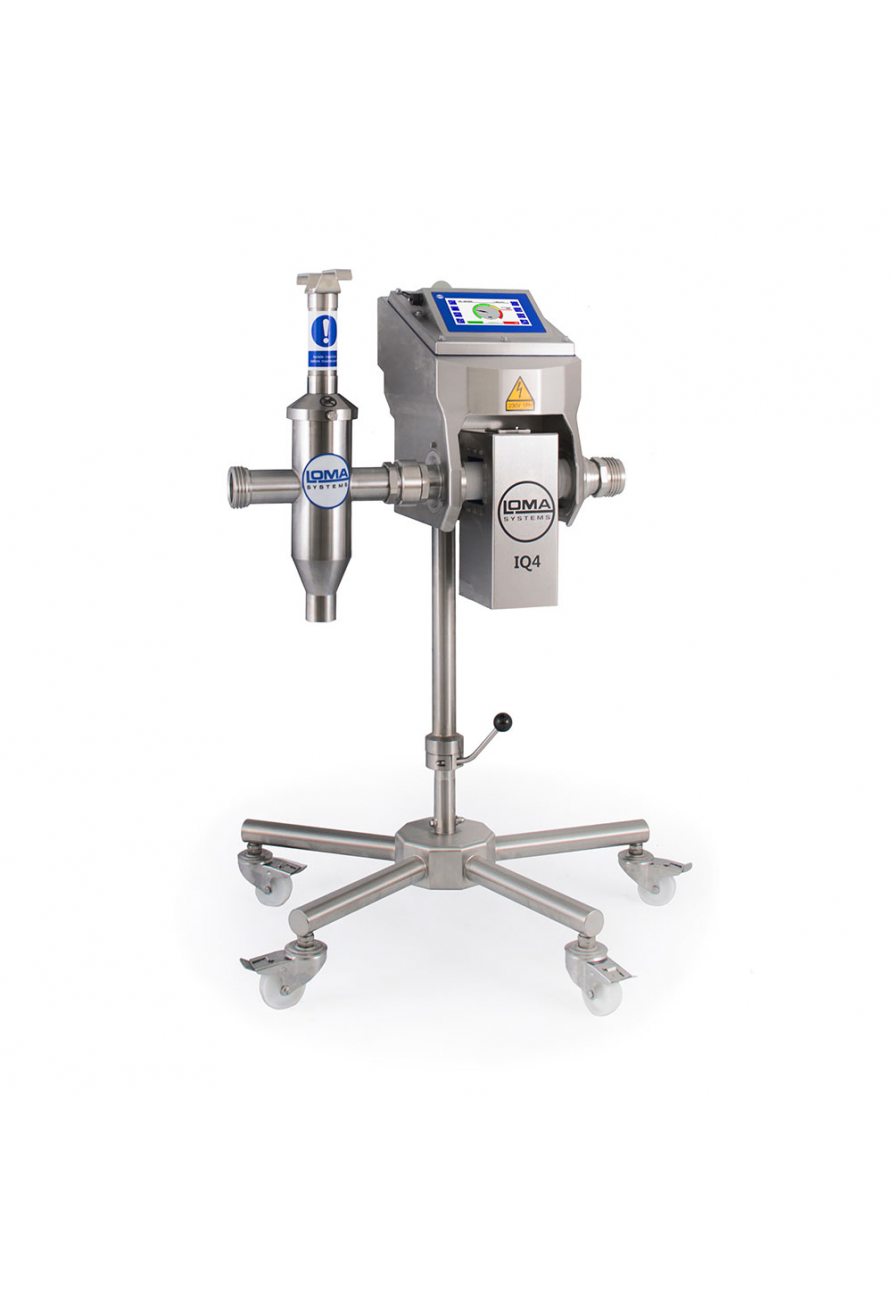

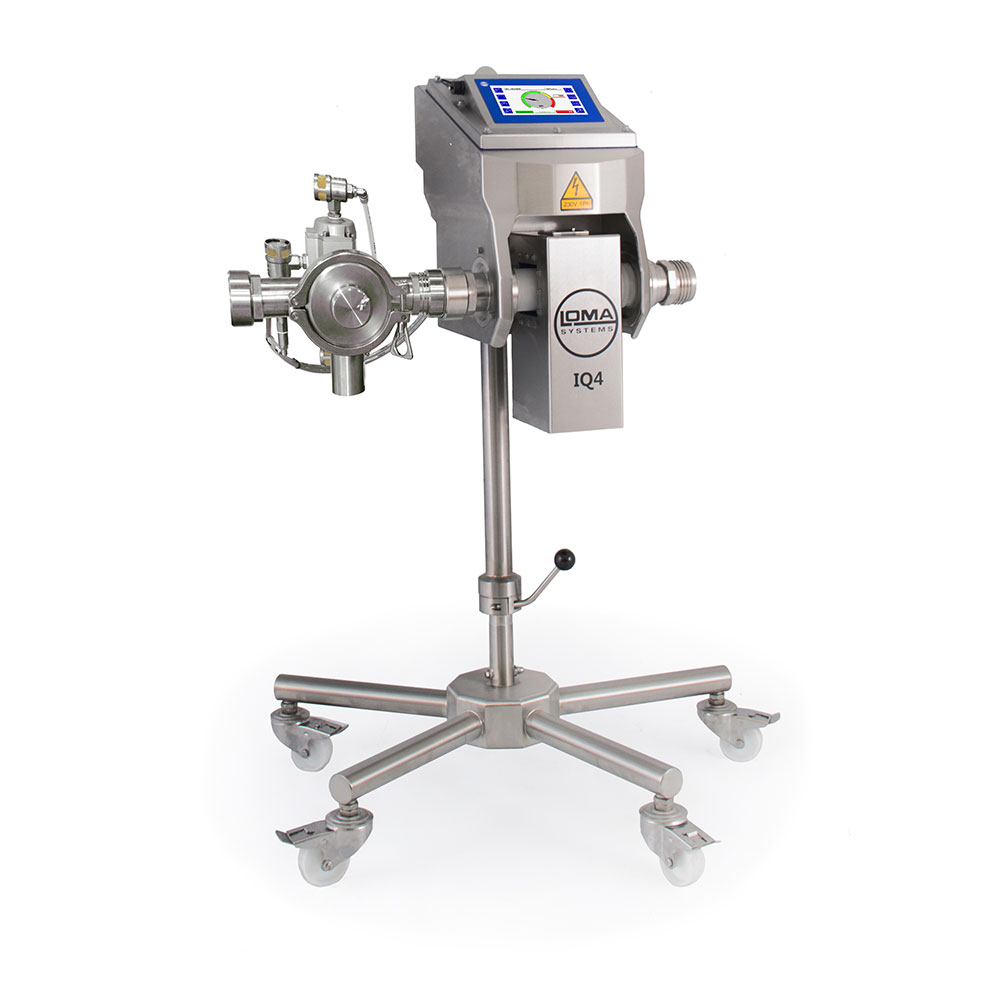

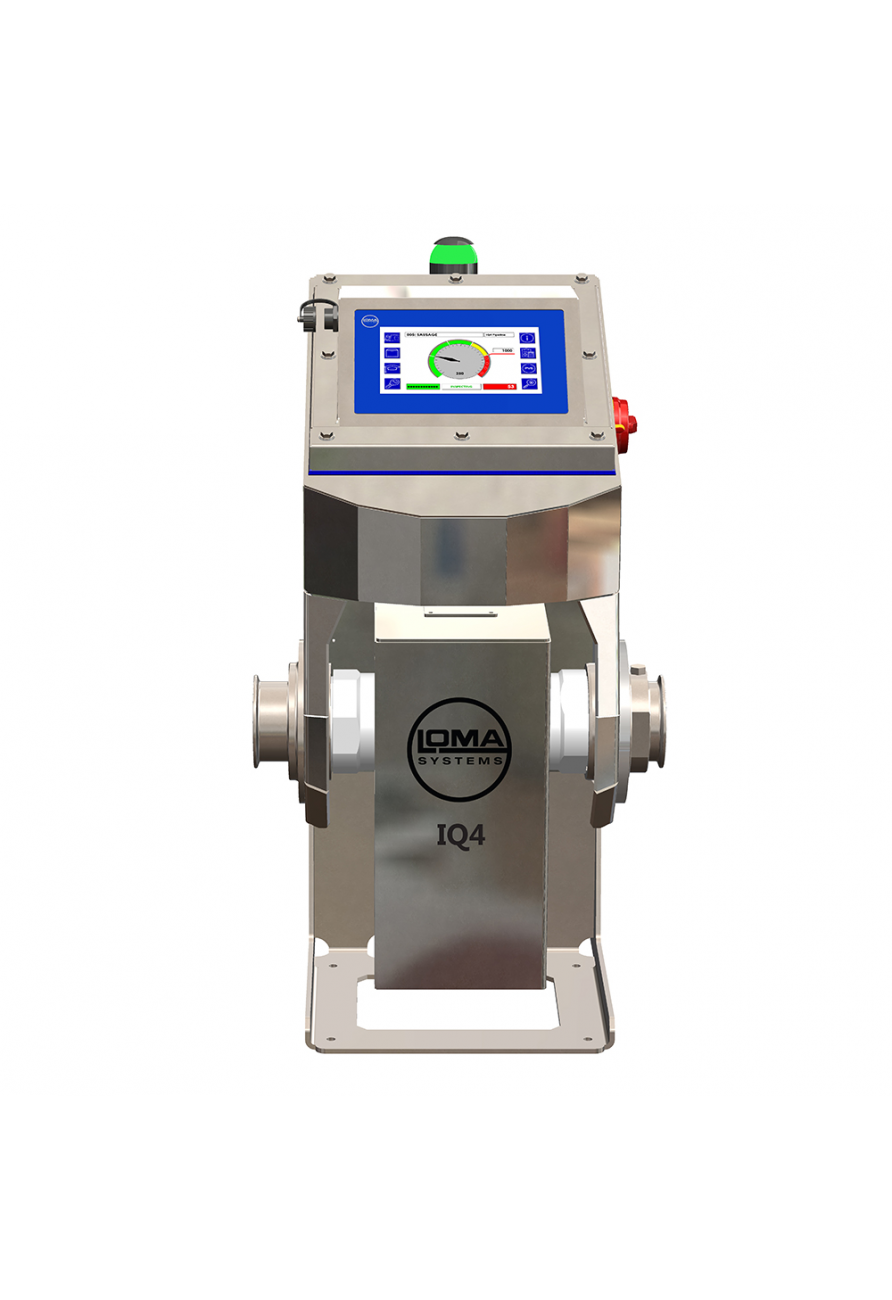

The IQ4 Pipeline is a robust system designed for both Sterile in Place (SIP) and easy strip down cleaning depending on the application, complying to EN1672-2 hygiene standards. This system is designed to be used with pumped and flowing products such as meat slurries, soups, sauces, jams or dairy. Designed to be on a mobile stand with gas strut for height adjustment (meat applications) or a fixed L Bracket (non-meat applications), the IQ4 Pipeline is built to IP69K rating making it suitable for both high-care and low-care environments.
Additional information
Specifications
- Pipe Connections: Tri Clamp or RD80 (threaded).
- Finish: 304 Stainless steel.
- Mounting Options: Stand, L Bracket, Hinge (Handtmann).
- Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & amp;Earth.
- Power Consumption: 20 VA.
- Air Supply: 5 to 8 Bar (10mm Outside Dia) 72-116 PSI.
- Temperature Range: -10 to +40 oC (14 to 104 oF).
- Humidity: 0 to 95% Relative Humidity (Non-condensing).
- IP Rating: IP69K.
- Machine weight 40-80kg.
- PVS Enabled: Yes.
- Reporting: Batch, Shift.
- Data Retrieval: Via USB, Ethernet, TRACS.
- Optional Extras: Remote Control Box.
- Cooling: Vortex.
- X-Ray Safety: Leakage less than 1 µSv/h.
- Machine Weight: 160kg.
- Detection Algorithms: 2 x Contaminant, 3 x Object checking, 2 x Image optimization.
- Reporting: Event, Batch and Shift.
- Data Retrieval: Via USB.
